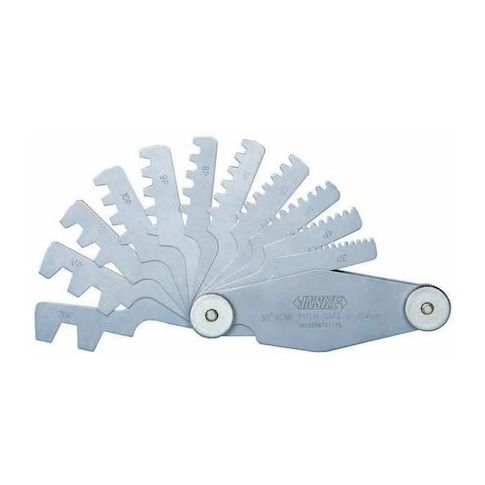

Screw Pitch Gage, Thread Angle 30 degrees MPN:4824-12
Screw Pitch Gage, Thread Angle 30 degrees
The Insize Screw Pitch Gage is a versatile tool for precise thread measurements in metric systems. With a 30-degree thread angle and a set of 12 leaves, this gauge accurately measures thread pitches from 2mm to 20mm, making it ideal for various applications in industries such as manufacturing, quality control, and engineering. Its compact size and durable steel construction make it easy to use and transport. This gauge is perfect for measuring and verifying thread pitches in bolts, screws, and other fasteners, ensuring precise fits and reducing errors in production processes.
Top product features:
- Thread Pitch Gauge Set included for measuring various thread pitches
- Gauge Material is Steel for durability and resistance to wear
- Thread Angle is 30 degrees for compatibility with standard metric threads
Top product applications:
- Thread inspection in manufacturing
- Checking thread pitch on metric screws
- Quality control of threaded fasteners
Thread Pitch Gauge Set, Included Thread Pitch - mm 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, 12 mm, 16 mm, 20 mm, Maximum Thread Pitch - mm 20 mm, Maximum TPI Not Applicable, Minimum Thread Pitch - mm 2 mm, Minimum TPI Not Applicable, Number of Leaves 12, Thread Angle 30 Degrees , Thread Type Metric, Gauge Material Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.41
Product info last updated on February 12, 2026 9:26pm UTC
Category: Measuring and Marking Tools
