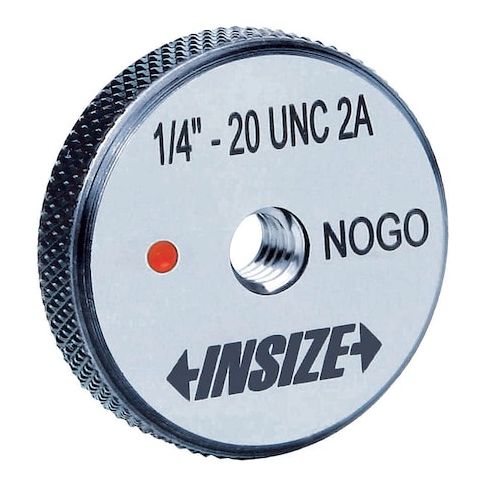

Threaded Ring Gauge Dimension Type Inch MPN:4121-9D2N
Threaded Ring Gauge Dimension Type Inch
Accurately measure threaded components with the Threaded Ring Gauge from Insize. This long-form gauge is designed for precision measurement of thread sizes, ensuring that your parts meet the required standards. Made from durable steel, it features a solid design and uncoated finish. The gauge is calibrated to ANSI B1.2 standards and comes with a Certificate of Inspection. Ideal for use in quality control, manufacturing, and inspection, this gauge is perfect for industries such as aerospace, automotive, and oil and gas. Its compact size and lightweight design make it easy to use in a variety of applications.
Top product features:
- Threaded design for precise measurement of internal threads
- No-Go gauge type for ensuring thread size compliance
- Solid gauge design for durability and long-term accuracy
Top product applications:
- Quality control in manufacturing facilities
- Inspecting threaded components in aerospace industry
- Measuring thread sizes in automotive repair shops
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 9/16 in, Thread Class 2A, Thread Length 8mm, Thread Size 9/16 In.-18, Thread Type UNF, Finish Uncoated, Gauge Design Solid, Included Certification Certificate of Inspection, Standards ANSI B1.2, Tolerance Class 2A
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.17
- Package Width: 2.17
- Package Height: 0.91
- Package Weight: 0.16
Product info last updated on April 11, 2026 3:16am UTC
Category: Measuring and Marking Tools
