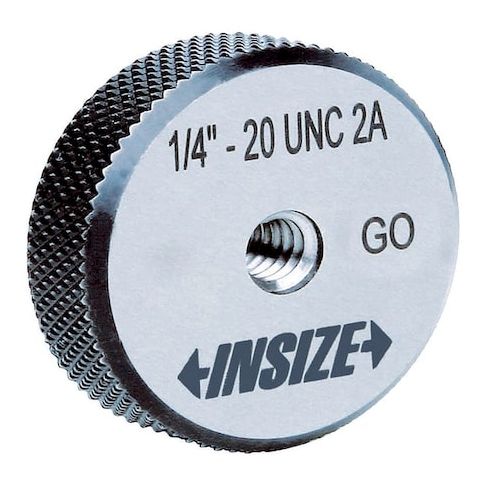

Threaded Ring Gauge Dimension Type Inch MPN:4121-9D2
Threaded Ring Gauge Dimension Type Inch
Accurately measure threaded components with Insize's Threaded Ring Gauge. This long form calibration certificate ensures precise results for thread inspection and verification. Made from durable steel, the gauge is designed for use with UNF threads and features a solid construction for long-lasting performance. Ideal for quality control and inspection in industries such as aerospace, automotive, and manufacturing, this gauge provides a reliable means of checking thread sizes and tolerances. Its compact size and lightweight design make it easy to use in a variety of settings, from shop floors to inspection labs.
Top product features:
- Threaded Ring Gauge provides a precise measurement of thread pitch diameter.
- The gauge is calibrated to ANSI B1.2 standards for accuracy and reliability.
- The gauge is designed with a solid construction for durability and resistance to wear.
Top product applications:
- Checking the thread size on machinery and equipment
- Inspecting the thread quality of manufactured parts
- Measuring the thread fit on custom fittings and adapters
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Steel, Dimension Type Inch, Gauge Type Go (Plus), Pitch Diameter 9/16 in, Thread Class 2A, Thread Length 14mm, Thread Size 9/16 In.-18, Thread Type UNF, Finish Uncoated, Gauge Design Solid, Included Certification Certificate of Inspection, Standards ANSI B1.2, Tolerance Class 2A
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.17
- Package Width: 2.17
- Package Height: 0.91
- Package Weight: 0.23
Product info last updated on February 19, 2026 11:42am UTC
Category: Measuring and Marking Tools
