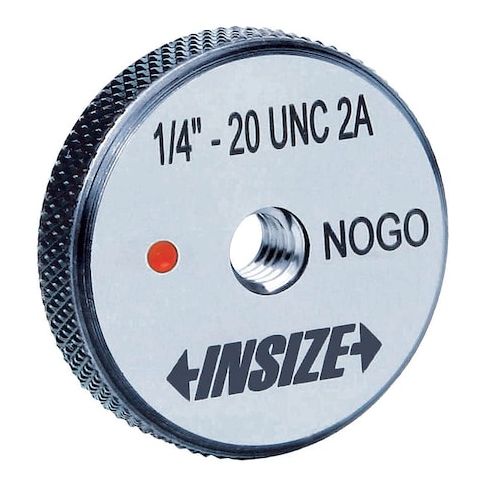

Threaded Ring Gauge Dimension Type Inch MPN:4121-7D2N
Threaded Ring Gauge Dimension Type Inch
Accurately measure threaded components with precision and reliability using the Threaded Ring Gauge from Insize. This long-form gauge is designed for use in quality control and inspection applications, providing a no-go measurement to ensure threads meet specifications. Ideal for industries such as aerospace, automotive, and manufacturing, this gauge helps prevent costly rework and ensures compliance with ANSI B1.2 standards. With a durable steel construction and easy-to-read design, this gauge is a valuable tool for ensuring thread quality and consistency in a variety of applications.
Top product features:
- No-Go (Minus) thread gauge provides a precise measurement to ensure thread clearance and prevent over-tightening.
- Solid gauge design allows for a more accurate and durable measurement of threaded parts.
- Uncoated finish provides a clean and accurate thread measurement without any potential interference from a coating.
Top product applications:
- Quality Control Inspection
- Threaded Ring Gauges are used to verify the accuracy of threaded parts, ensuring they meet specifications for pitch, diameter, and thread class.
- Machining and Manufacturing
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 7/16 in, Thread Class 2A, Thread Length 8mm, Thread Size 7/16 In.-20, Thread Type UNF, Finish Uncoated, Gauge Design Solid, Included Certification Certificate of Inspection, Standards ANSI B1.2, Tolerance Class 2A
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.17
- Package Width: 2.17
- Package Height: 0.91
- Package Weight: 0.17
Product info last updated on April 17, 2026 1:16am UTC
Category: Measuring and Marking Tools
