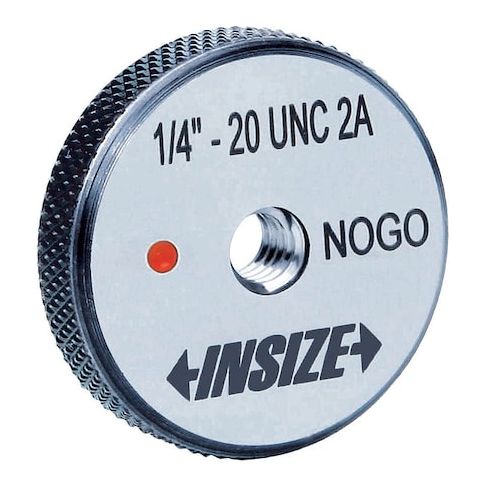

Threaded Ring Gauge Dimension Type Inch MPN:4121-5C2N
Threaded Ring Gauge Dimension Type Inch
Ensure precise thread measurements with the Insize Threaded Ring Gauge. This long-form calibration gauge is ideal for inspecting and verifying thread sizes on machinery and equipment. Its solid design and 2A tolerance class guarantee accurate results. The gauge is specifically designed for use with UNF threads, making it perfect for applications in the aerospace, automotive, and industrial industries. With its compact size and easy-to-use design, this gauge is a valuable tool for quality control professionals and manufacturers alike. It ships with a certificate of inspection and meets ANSI B1.2 standards.
Top product features:
- Threaded Ring Gauge provides a No-Go (Minus) measurement for thread acceptance.
- The gauge has a Solid design for durability and stability.
- The gauge is calibrated to ANSI B1.2 standards for accuracy and reliability.
Top product applications:
- Quality Control in Manufacturing
- Threaded Ring Gauge is used to inspect and verify the thread size and pitch of threaded components.
- Threaded Ring Gauge is used to inspect and verify the thread size and pitch of threaded components in the aerospace industry.
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 5/8 in, Thread Class 2A, Thread Length 8mm, Thread Size 5/8 In.-18, Thread Type UNF, Finish Uncoated, Gauge Design Solid, Included Certification Certificate of Inspection, Standards ANSI B1.2, Tolerance Class 2A
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.24
- Package Width: 2.09
- Package Height: 0.91
- Package Weight: 0.22
Product info last updated on February 21, 2026 1:59am UTC
Category: Measuring and Marking Tools
