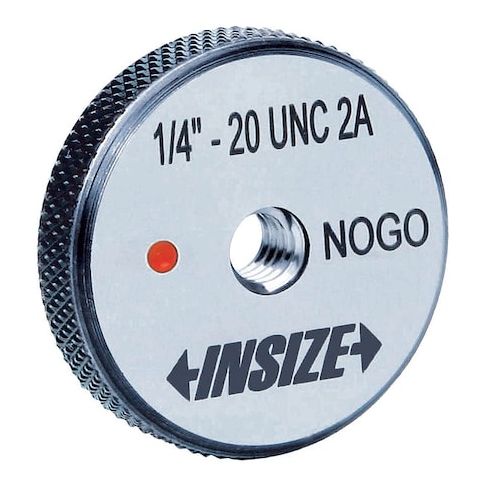

Threaded Ring Gauge Dimension Type Inch MPN:4121-41N
Threaded Ring Gauge Dimension Type Inch
Ensure accurate thread measurements with the Insize Threaded Ring Gauge, designed for precise inspections. This long-form calibration certificate gauge is crafted from steel and features a solid design. Its no-go (-) gauge type measures the minimum thread size, with a pitch diameter of 0.112 in and a thread class of 2A. Suitable for use in quality control and manufacturing, this gauge is ideal for inspecting threaded parts and verifying thread conformity to ANSI B1.2 standards. Its compact size and lightweight design make it easy to handle and store, making it a valuable tool for any industry requiring precise thread measurements.
Top product features:
- Long Form Calibration Certificate is included with the gauge.
- The gauge is designed as a No-Go (Minus) type, indicating that it is used to check that a thread is smaller than the specified size.
- The gauge has a solid design.
Top product applications:
- Threaded Ring Gauge for quality control and inspection in manufacturing processes
- Threaded Ring Gauge for measuring and verifying thread sizes in mechanical engineering and machining applications
- Threaded Ring Gauge for ensuring thread conformity in aerospace and defense industries
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.112 in, Thread Class 2A, Thread Length 4mm, Thread Size #4-40, Thread Type UNC, Finish Uncoated, Gauge Design Solid, Included Certification Certificate of Inspection, Standards ANSI B1.2, Tolerance Class 2A
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.09
- Package Height: 0.91
- Package Weight: 0.05
Product info last updated on January 17, 2026 11:34pm UTC
Category: Measuring and Marking Tools
