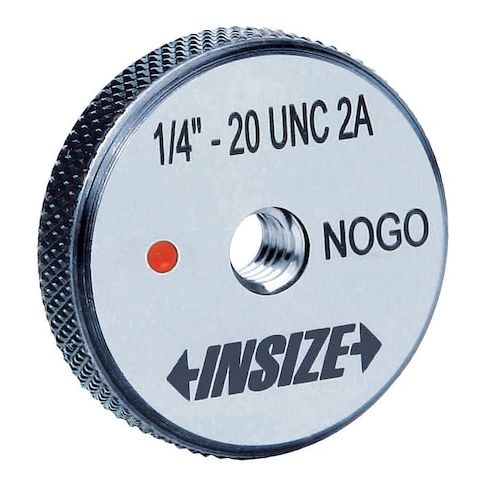

Threaded Ring Gauge Dimension Type Inch MPN:4121-5D2N
Threaded Ring Gauge Dimension Type Inch
Ensure precise measurements with the Threaded Ring Gauge from Insize, a reliable tool for inspecting thread size and pitch. Suitable for a variety of applications, including quality control, manufacturing, and aerospace industries, this gauge is designed to verify the accuracy of threaded components. Its long form calibration certificate provides assurance of its precision. Made from durable steel, this no-go (minus) gauge is ideal for inspecting threads that must not exceed a specific size. With its compact size and uncoated finish, it's easy to use and maintain, making it a valuable addition to any quality control or inspection process.
Top product features:
- The product is calibrated to a long form calibration certificate.
- The product is made of steel.
- The product is a no-go (minus) gauge.
Top product applications:
- Threaded Ring Gauge is used to inspect the pitch diameter of threaded parts in the manufacturing process.
- Threaded Ring Gauge is used to verify the thread size and pitch diameter of UNF threads in various industries.
- Threaded Ring Gauge is used to ensure the correct thread size and pitch diameter in the aerospace industry for critical applications.
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 5/16 in, Thread Class 2A, Thread Length 5mm, Thread Size 5/16 In.-24, Thread Type UNF, Finish Uncoated, Gauge Design Solid, Included Certification Certificate of Inspection, Standards ANSI B1.2, Tolerance Class 2A
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.17
- Package Width: 2.09
- Package Height: 0.91
- Package Weight: 0.12
Product info last updated on February 2, 2026 3:18pm UTC
Category: Measuring and Marking Tools
