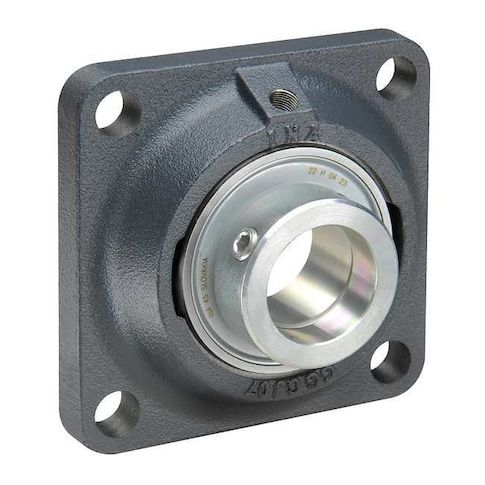

4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Cast Iron, Eccentric Locking Collar MPN:PCF30-XL
4 Holes, Square Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Cast Iron, Eccentric Locking Collar
The INA 4-Bolt Flange Bearing is a heavy-duty solution for applications requiring high radial load capacity and reliability. Suitable for use in a variety of industries, including industrial machinery, automotive, and aerospace, this bearing features a cylindrical bore and a fixed expansion type design. The alloy steel bearing insert provides exceptional strength and durability, while the lithium complex grease lubricant ensures smooth operation. With a temperature range of -30 to 50 degrees C, this bearing is ideal for use in harsh environments. Its compact design and easy installation make it a versatile choice for a range of applications.
Top product features:
- The bearing is a radial ball bearing insert.
- The bearing has a double sealed closure.
- The bearing is lubricated with lithium complex grease.
Top product applications:
- Industrial machinery
- Pumps and compressors
- Conveyor systems
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Mount Hole Center-to-Center Height 82.5 mm, Number of Mount Holes 4, Overall Height 108 mm, Overall Length 108 mm
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.20
- Package Height: 1.90
- Package Weight: 2.30
Product info last updated on April 26, 2026 8:19am UTC
Category: Bearings, V-belts and Power Transmission Equipment
