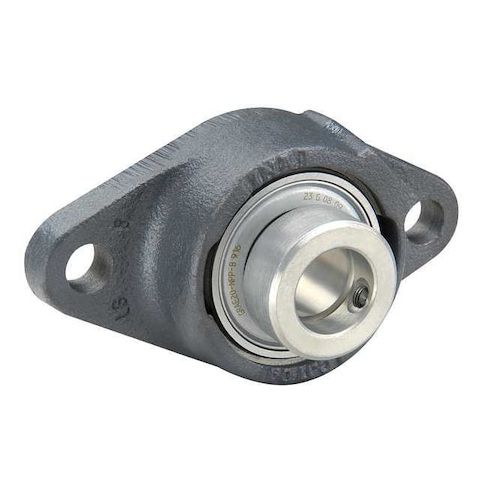

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 45 mm Dia, Cast Iron, Collar Locking MPN:PCJT45-XL-I
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 45 mm Dia, Cast Iron, Collar Locking
This 2-bolt flange bearing from INA is a robust and reliable solution for a variety of industrial applications. Its alloy steel construction and radial ball bearing insert provide excellent load-carrying capacity and smooth operation, while the double-sealed closure ensures long-lasting protection against contaminants. Suitable for use in temperatures ranging from -30 to 50 degrees Celsius, this bearing is ideal for applications in mechanical engineering, automotive, and aerospace industries. Its compact size and fixed expansion type make it easy to integrate into existing systems, offering a reliable and efficient solution for demanding applications.
Top product features:
- This product is a radial ball bearing insert with a fixed expansion type, allowing for secure and stable operation in a variety of applications.
- The bearing is double sealed to prevent contamination and ensure long-lasting performance.
- The bearing is lubricated with lithium complex grease, providing a stable and consistent lubrication system.
Top product applications:
- Pump Shafts
- Gearbox Shafts
- Conveyor System Components
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 45 mm, Bore Type Cylindrical, Center Height 48 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 111 mm, Overall Length 180 mm, Overall Width 56.7 mm
Additional Information
- Country of Origin: SK
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.41
- Package Width: 1.86
- Package Height: 7.65
- Package Weight: 4.47
Product info last updated on March 4, 2026 1:33am UTC
Category: Bearings, V-belts and Power Transmission Equipment
