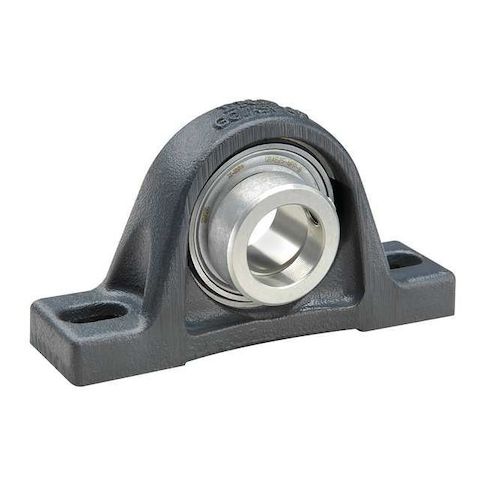

Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 20 mm Dia, Alloy Steel Insert Material MPN:PASE20-XL-N
Pillow Block Bearing, Cast Iron Housing Material, Eccentric Locking Collar, Ball, 20 mm Dia, Alloy Steel Insert Material
The INA Pillow Block Bearing, Ball, 20mm Bore is a versatile and reliable solution for a wide range of applications, including industrial machinery, automotive systems, and heavy machinery. Its robust design and durable materials ensure smooth operation and extended lifespan, even in harsh environments. The bearing's radial insert ball design provides excellent load-carrying capacity and resistance to shock and vibration, making it ideal for use in high-precision applications. With a temperature range of -20 to 120°C, this bearing is suitable for use in a variety of industries, including manufacturing, construction, and more.
Top product features:
- Radial insert ball bearing design allows for smooth rotation and reduced friction
- Cast iron housing provides durability and resistance to wear
- Lip seal protects the bearing from dust and contaminants
Top product applications:
- Machine Tool Spindles
- Conveyor Belt Idlers
- Robot Arm Mounts
Pillow Block Bearing, Base Height 14.5 mm, Base Width 32 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Insert Ball, Bore Diameter 20 mm, Center Height 33.3 mm, Housing Material Cast Iron, Lubricant Material FAG Arcanol-MULTI2/NLGI #2 Equivalent, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Width 97.5 mm, Overall Height 64 mm, Overall Length 130 mm, Overall Width 31 mm, Seal Type Lip Seal
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.32
- Package Width: 5.53
- Package Height: 2.72
- Package Weight: 1.59
Product info last updated on February 2, 2026 3:32pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
