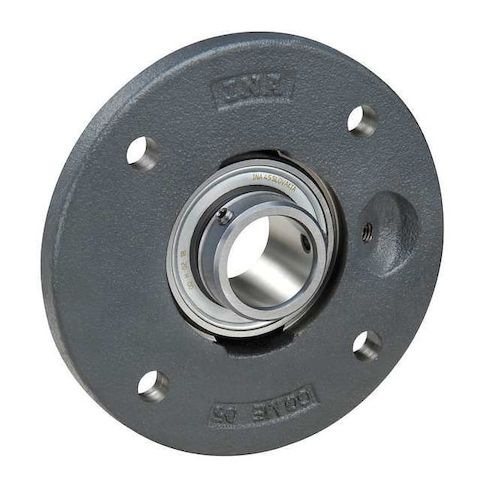

4 Mount Holes, Circular, Flange Mount Bearing, Radial Ball, 25 mm Dia, Cast Iron, Eccentric Locking Collar Locking MPN:PME25-XL-N
4 Mount Holes, Circular, Flange Mount Bearing, Radial Ball, 25 mm Dia, Cast Iron, Eccentric Locking Collar Locking
The INA 4-Bolt Flange Bearing is a reliable and versatile solution for various industrial applications. Its radial ball bearing design and alloy steel construction ensure smooth operation and durability in temperatures ranging from -30 to 50 degrees Celsius. This bearing is ideal for use in heavy machinery, equipment, and gearboxes, where high loads and stresses are present. Its double-sealed closure and lithium complex grease lubricant provide extended service life and protection against contaminants. With a compact design and easy mounting, this bearing is perfect for applications in manufacturing, construction, and automotive industries.
Top product features:
- Double sealed to prevent contamination and maintain lubrication
- Radial ball bearing design for smooth rotation and reduced friction
- Fixed expansion type to maintain consistent bearing performance under varying loads
Top product applications:
- Pump and motor shaft support
- Conveyor and transmission shaft support
- Gearbox and transmission shaft support
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 4, Overall Height 115 mm, Overall Length 115 mm, Overall Width 31 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.32
- Package Width: 4.89
- Package Height: 4.89
- Package Weight: 1.93
Product info last updated on February 5, 2026 3:30pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
