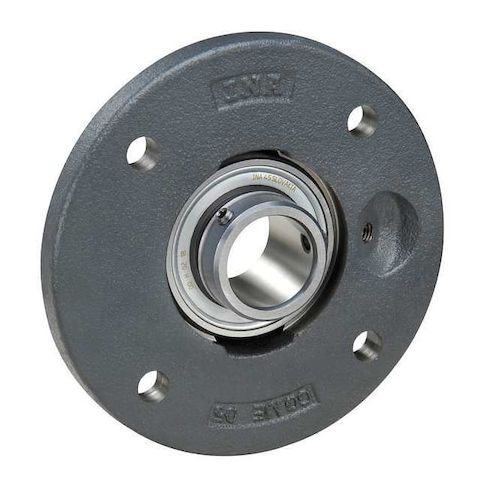

4 Holes, Circular Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Cast Iron, Eccentric Locking Collar MPN:PME30-XL-N
4 Holes, Circular Housing, Flange Mount Bearing, Radial Ball, 30 mm Dia, Cast Iron, Eccentric Locking Collar
This 4-bolt flange bearing from INA is designed for heavy-duty applications where reliability and durability are crucial. With a 30mm bore and radial ball bearing insert, it provides smooth rotation and supports high loads. The alloy steel construction and cast iron housing ensure long-lasting performance, while the lithium complex grease lubricant maintains smooth operation in temperatures ranging from -30°C to 50°C. Suitable for use in machinery, equipment, and industrial settings, this bearing is ideal for applications requiring fixed expansion and double-sealed protection. Its compact size and lightweight design make it easy to integrate into various systems.
Top product features:
- Double sealed to protect against dirt and moisture
- Radial ball bearing for smooth rotation and reduced friction
- Fixed expansion type to maintain a consistent fit and prevent movement
Top product applications:
- Conveyor Systems
- Pumps and Compressors
- Gearboxes and Power Transmission Systems
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 4, Overall Height 125 mm, Overall Length 125 mm, Overall Width 35.8 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 5.50
- Package Height: 1.80
- Package Weight: 1.95
Product info last updated on March 19, 2026 7:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
