2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Set Screw Locking MPN:RCJTY20-XL-N
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Set Screw Locking

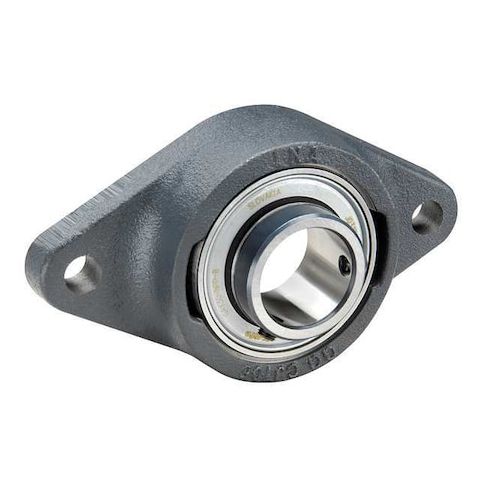

The INA 2-Bolt Flange Bearing is a robust and reliable solution for applications requiring radial ball bearings. With a 20mm bore diameter and fixed expansion type, this bearing is ideal for use in heavy-duty machinery, industrial equipment, and construction vehicles. The double-sealed design ensures long-lasting performance and protection against harsh environments, while the lithium complex grease lubricant maintains optimal bearing conditions. Suitable for temperatures ranging from -30°C to 50°C, this bearing is perfect for applications in manufacturing, mining, and heavy industry, providing smooth operation and extended lifespan.
Top product features:
- Double sealed for protection against dust and moisture
- Radial insert ball bearing for smooth and quiet rotation
- Lithium complex grease lubricant for reduced friction and wear
Top product applications:
- Pump and Compressor Shafts
- High-Speed Axial Fans
- Industrial Gearboxes
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 112 mm, Overall Length 61 mm, Overall Width 37.3 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 71 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 3.00
- Package Height: 2.10
- Package Weight: 1.10
Product info last updated on January 17, 2026 5:00pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
