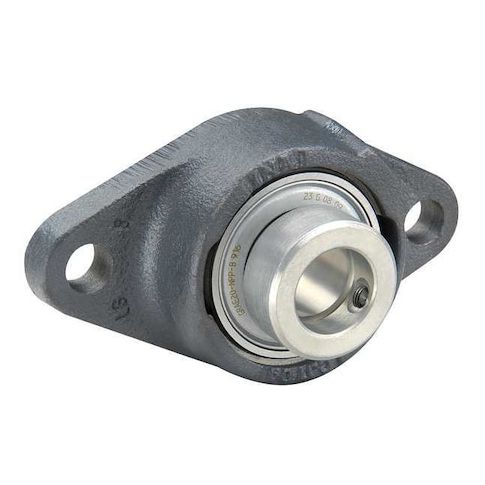

2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Eccentric Locking Collar Locking MPN:RCJT20-XL-N
2 Mount Holes, Rhombus, Flange Mount Bearing, Radial Ball, 20 mm Dia, Cast Iron, Eccentric Locking Collar Locking
The INA 2-Bolt Flange Bearing is a robust and reliable radial ball bearing ideal for a wide range of applications, including industrial machinery, automotive, and aerospace. Its alloy steel bearing insert and cast iron housing ensure durability and resistance to extreme temperatures, operating within a -30°C to 50°C range. The double-sealed design provides long-lasting protection against dust and moisture, while the lithium complex grease lubricant maintains smooth operation. With its compact rhombus housing and fixed expansion type, this bearing is perfect for applications where space and stability are crucial, such as in gearboxes, pumps, and conveyor systems.
Top product features:
- Double sealed closure protects the bearing from dust and contaminants.
- Radial ball bearing design provides smooth and quiet operation.
- Lithium complex grease lubricant ensures long-lasting and reliable performance.
Top product applications:
- Robotics
- Conveyor Systems
- Machine Tools
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 20 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 112 mm, Overall Length 61 mm, Overall Width 45.6 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: SK
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.40
- Package Height: 5.50
- Package Weight: 1.15
Product info last updated on February 24, 2026 5:56pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
