4 Holes, Circular Housing, Flange Mount Bearing, Radial Ball, 55 mm Dia, Cast Iron, Concentric Collar MPN:PME55-XL
4 Holes, Circular Housing, Flange Mount Bearing, Radial Ball, 55 mm Dia, Cast Iron, Concentric Collar

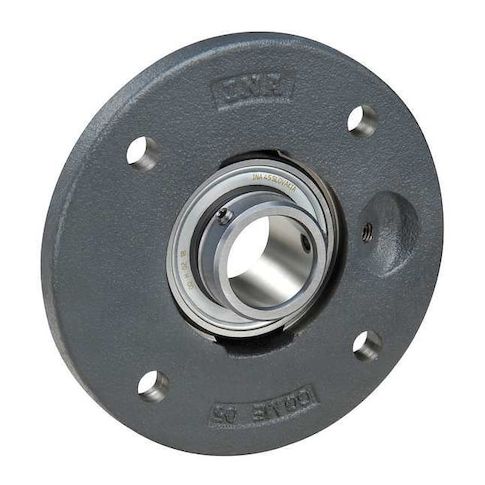

The INA Flange Bearing is a reliable and versatile solution for various industrial applications. Its 4-bolt design and alloy steel construction ensure a secure fit and long-lasting performance. With a bore diameter of 55mm and a maximum temperature rating of 50°C, this bearing is suitable for use in a range of environments. Its radial ball bearing insert provides smooth and efficient movement, making it ideal for use in machinery and equipment such as pumps, gearboxes, and conveyor systems. The double-sealed design and lithium complex grease ensure reliable lubrication and protection from contamination.
Top product features:
- Cylindrical bore provides a smooth surface for rotating applications
- Double sealed closure protects against contaminants and debris
- Lithium complex grease lubricant reduces friction and wear on moving parts
Top product applications:
- Industrial machinery
- Automotive applications
- Heavy machinery
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 55 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 4, Overall Height 185 mm, Overall Length 185 mm, Overall Width 48.4 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.06
- Package Width: 7.87
- Package Height: 7.87
- Package Weight: 7.30
Product info last updated on March 5, 2026 1:18am UTC
Category: Bearings, V-belts and Power Transmission Equipment
