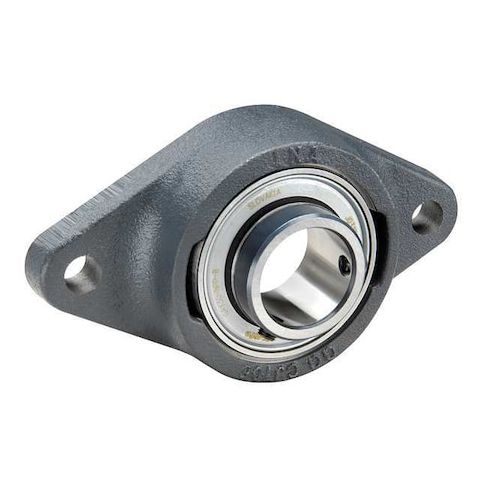

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 25 mm Dia, Cast Iron, Set Screw MPN:RCJTY25-XL-N
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 25 mm Dia, Cast Iron, Set Screw
This 2-bolt flange bearing from INA is a robust and reliable solution for various industrial applications. Featuring a radial ball bearing insert made of alloy steel, it provides smooth and quiet operation in demanding conditions. With a temperature range of -30°C to 50°C, it can withstand extreme temperatures. Its double-sealed design and lithium complex grease ensure long-lasting performance and minimal maintenance. Suitable for use in heavy machinery, agricultural equipment, and construction vehicles, this bearing offers reliable support for moving parts, reducing wear and tear, and increasing overall efficiency. Its compact design also makes it ideal for space-constrained applications.
Top product features:
- 2-Bolt design for secure mounting
- Double sealed closure for protection against contaminants
- Radial insert ball bearing for smooth rotation and reduced friction
Top product applications:
- Pump and motor mounting
- Conveyor and roller bearing applications
- Robot arm and mechanical linkage bearings
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 124 mm, Overall Length 70 mm, Overall Width 38.8 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.90
- Package Height: 2.10
- Package Weight: 1.35
Product info last updated on January 27, 2026 12:19pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
