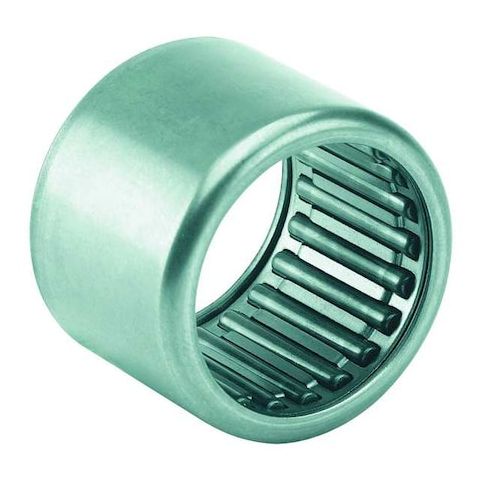

Needle Brg, Drawn Cup, Bore 55mm, OD 63mm MPN:HK5520-HLA
Needle Brg, Drawn Cup, Bore 55mm, OD 63mm
This drawn cup needle roller bearing is designed for high-speed applications, supporting shafts with a 55mm bore and 63mm outside diameter. Compatible with a wide range of industries, it's ideal for use in automotive, aerospace, and industrial equipment manufacturing. The bearing's open design allows for easy installation and maintenance, while its steel cage and alloy steel construction provide durability and resistance to high temperatures. With a maximum speed of 4,850 RPM and a wide operating temperature range, this bearing is suitable for applications requiring high precision and reliability. Its compact design also makes it suitable for space-constrained environments.
Top product features:
- Drawn cup design provides a secure and stable fit in applications
- Full complement design allows for high load capacity and smooth operation
- Lubrication compatibility with both grease and oil enables flexibility in maintenance and operating conditions
Top product applications:
- High-speed industrial machinery
- Automotive parts manufacturing
- Precision engineering equipment
Needle Roller Bearing, Bearing Industry Number 5520, Bearing Design HK, Bore Diameter 55 mm, Cage Material Steel, Closure Open, Compatible Ring Manufacturer Part Number LR50X55X20,5, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 2,900 RPM Grease, 4,850 RPM Oil, Maximum Temperature 140 Degrees C, Minimum Temperature -30 Degrees C, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 63 mm, Overall Width 20 mm, Ring Material Alloy Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.10
- Package Height: 0.90
- Package Weight: 0.20
Product info last updated on February 21, 2026 11:55pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
