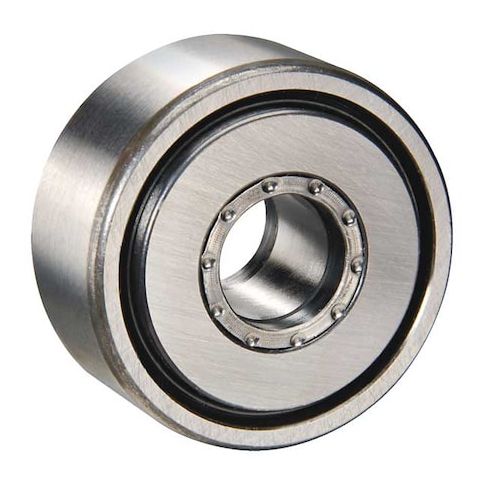

Double Sealed Track Roller, Crowned Yoke, Alloy Steel, 47 mm Dia, 24 mm Wd, 20 mm Bore Dia MPN:NATV20-PP-A
Double Sealed Track Roller, Crowned Yoke, Alloy Steel, 47 mm Dia, 24 mm Wd, 20 mm Bore Dia
The INA Yoke Track Roller is a heavy-duty bearing designed for high-performance applications. With a crowned roller head and full complement of rolling elements, it provides exceptional load-carrying capacity and smooth operation. Suitable for use in demanding environments, this bearing features a double-sealed design for maximum protection against contamination and wear. Ideal for applications in the automotive, aerospace, and industrial sectors, the Yoke Track Roller is a reliable solution for heavy-duty machinery, including gears, shafts, and other moving parts. Its compact size and lightweight design make it an excellent choice for space-constrained systems.
Top product features:
- Double Sealed to prevent contamination and maintain lubrication
- Crowned Roller Head for smooth and quiet operation
- Full Complement design for increased load capacity and durability
Top product applications:
- Precision machinery
- Automotive components
- Aerospace equipment
Yoke Roller, Bore Diameter 20 mm, Closure Double Sealed, Duty Type Heavy, Overall Length 25 mm, Roller Diameter 47 mm, Roller Head Type Crowned, Roller Material Alloy Steel, Roller Width 24 mm, Rolling Element Rows 1, Seal Type Contact, System of Measurement Metric, Bearing Material Alloy Steel, Bearing Material Grade 52100, Bearing Type Needle Roller, Dynamic Radial Load Capacity 20,200 N, Features Full Complement, Flange Diameter Not Applicable, Flange Thickness Not Applicable
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.50
- Package Height: 1.30
- Package Weight: 0.55
Product info last updated on January 23, 2026 3:10am UTC
Category: Bearings, V-belts and Power Transmission Equipment
