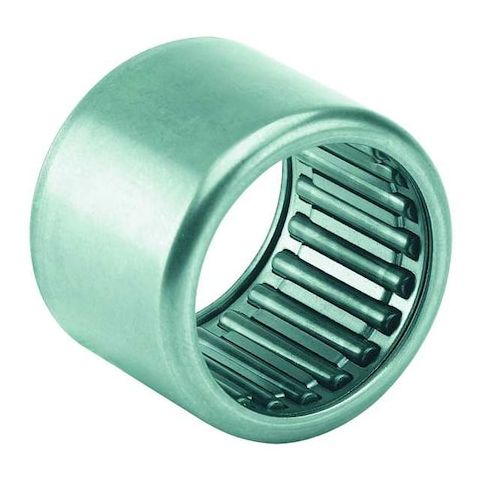

Needle Brg, Drawn Cup, Bore 25mm, OD 32mm MPN:HK2512-B
Needle Brg, Drawn Cup, Bore 25mm, OD 32mm
This high-performance drawn cup needle roller bearing is designed for demanding applications where precision and reliability are crucial. With a bore diameter of 25mm and outside diameter of 32mm, it provides a strong and stable bearing solution for a wide range of industries, including automotive, aerospace, and industrial equipment. The bearing's alloy steel construction and steel cage ensure durability and resistance to corrosion, while its open design allows for easy lubrication and maintenance. Suitable for use in temperatures ranging from -30°C to 140°C, this bearing is ideal for applications requiring high speed and precision, such as gearboxes, pumps, and motors.
Top product features:
- Drawn cup design provides a compact and space-efficient bearing configuration
- Full complement design allows for high load capacity and rigidity
- Lubrication compatibility with both grease and oil enables flexibility in maintenance and operating conditions
Top product applications:
- Pump shafts
- Conveyor systems
- Gearbox applications
Needle Roller Bearing, Bearing Industry Number 2512, Bearing Design HK, Bore Diameter 25 mm, Cage Material Steel, Closure Open, Compatible Ring Manufacturer Part Number LR20X25X12,5, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 10,200 RPM Oil, 6,100 RPM Grease, Maximum Temperature 140 Degrees C, Minimum Temperature -30 Degrees C, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 32 mm, Overall Width 12 mm, Ring Material Alloy Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.20
- Package Height: 2.50
- Package Weight: 0.06
Product info last updated on February 1, 2026 10:17am UTC
Category: Bearings, V-belts and Power Transmission Equipment
