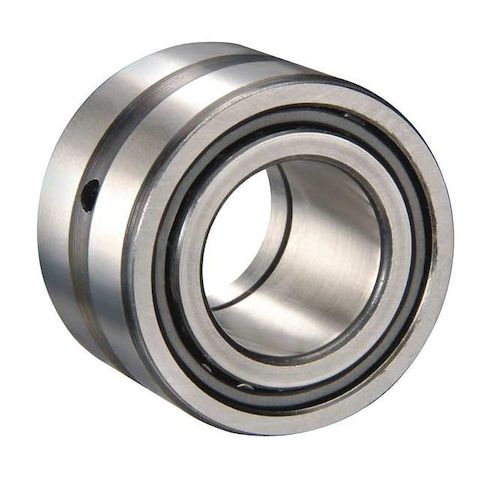

Combination Bearing, Bore Dia. 17 mm MPN:NKIB5903-XL
Combination Bearing, Bore Dia. 17 mm
The INA Combination Bearing is a high-performance solution for applications requiring precision and reliability. This bearing combines a steel ring with a plastic cage, allowing for smooth operation and high speeds of up to 20,600 RPM. With a dynamic axial load capacity of 3,150 N and a dynamic radial load capacity of 12,400 N, it can withstand demanding conditions. Suitable for use in machinery, equipment, and automotive applications, this bearing excels in high-temperature environments up to 120°C and low-temperature environments as low as -30°C. Its compact design and high-speed capabilities make it an ideal choice for industries requiring precision and efficiency.
Top product features:
- Combination bearing supports both radial and axial loads.
- Cage material is plastic for reduced friction and wear.
- Needle bearing design allows for high-speed rotation up to 20,600 RPM.
Top product applications:
- High-speed machinery such as spindles and axles
- Conveyor systems and material handling equipment
- Gearboxes and mechanical transmissions
Combination Bearing, Axial Bearing Outside Diameter 30 mm, Bearing Industry Number NKIB5903, Bore Diameter 17 mm, Cage Material Plastic, Maximum Speed 20,600 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Needle Bearing Outside Diameter 30 mm, Overall Width 20 mm, Ring Material Steel, System of Measurement Metric, Dynamic Axial Load Capacity 3,150 N, Dynamic Radial Load Capacity 12,400 N
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.20
- Package Height: 2.30
- Package Weight: 0.15
Product info last updated on March 9, 2026 3:34pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
