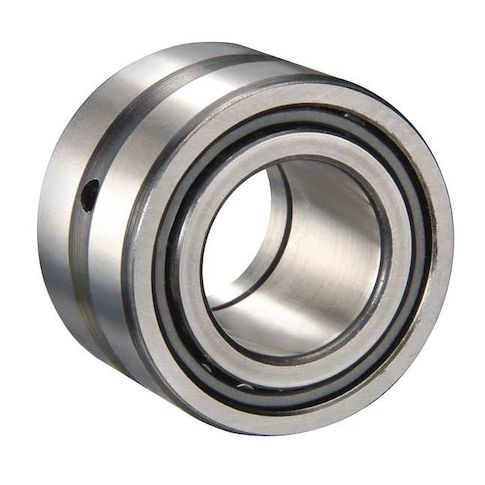

Combination Bearing, Bore Dia. 20 mm MPN:NKIB5904-XL
Combination Bearing, Bore Dia. 20 mm
This high-performance combination bearing from INA is designed for demanding applications where high speeds and loads are present. With a maximum speed of 17,200 RPM and a dynamic axial load capacity of 4,900 N, it's ideal for use in high-speed machinery, gearboxes, and other power transmission systems. Its plastic cage and steel ring material ensure durability and resistance to extreme temperatures, from -30°C to 120°C. Suitable for use in a variety of industries, including aerospace, automotive, and industrial equipment manufacturing, this bearing offers reliable performance and long lifespan. Its compact design and high load capacity make it a valuable asset for engineers and manufacturers.
Top product features:
- Combination bearing design allows for both axial and radial load support.
- Plastic cage material provides a low-friction and corrosion-resistant bearing design.
- Needle bearing design enables high-speed rotation up to 17,200 RPM.
Top product applications:
- High-speed machinery such as gearboxes and motors
- Automotive applications including engine mounts and suspension systems
- Aerospace equipment including jet engines and gearboxes
Combination Bearing, Axial Bearing Outside Diameter 37 mm, Bearing Industry Number NKIB5904, Bore Diameter 20 mm, Cage Material Plastic, Maximum Speed 17,200 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Needle Bearing Outside Diameter 37 mm, Overall Width 25 mm, Ring Material Steel, System of Measurement Metric, Dynamic Axial Load Capacity 4,900 N, Dynamic Radial Load Capacity 23,700 N
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 1.70
- Package Height: 1.10
- Package Weight: 0.25
Product info last updated on January 27, 2026 6:25am UTC
Category: Bearings, V-belts and Power Transmission Equipment
