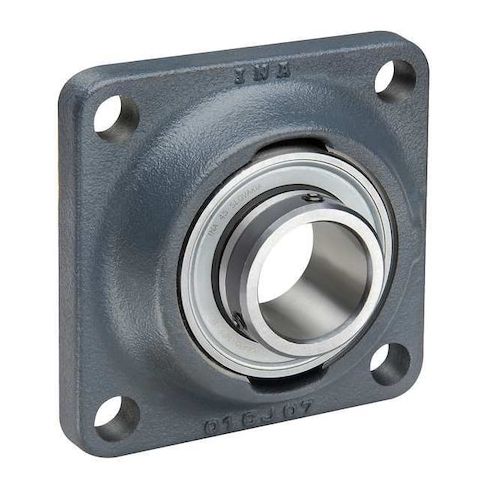

4 Holes, Flange Bracket Housing, 4 Bolt Flange Bearing, Radial Ball, 25/32 in Dia, Cast Iron, Eccentric Locking Collar MPN:RCJY20-N
4 Holes, Flange Bracket Housing, 4 Bolt Flange Bearing, Radial Ball, 25/32 in Dia, Cast Iron, Eccentric Locking Collar
This 4-bolt flange bearing is a reliable and versatile solution for a wide range of applications. Its alloy steel bearing insert and cast iron housing provide exceptional durability and strength, while the double sealed design ensures long-lasting performance in harsh environments. With a maximum temperature rating of 120°F and a minimum temperature rating of -20°F, this bearing can withstand a variety of operating conditions. Suitable for use in industrial machinery, agricultural equipment, and other heavy-duty applications, this bearing offers a cost-effective solution for maintaining smooth operation and extending equipment lifespan.
Top product features:
- Double sealed for protection against dust and moisture
- Fixed expansion type for secure mounting
- Lithium soap mineral oil grease for long-lasting lubrication
Top product applications:
- Pump shaft bearing
- Conveyor roller bearing
- Machine spindle bearing
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25/32 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Flange Bracket, Included Bearing Radial Insert Ball, Lubricant Material Lithium Soap Mineral Oil Grease, Maximum Temperature 120 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 2 1/2 in, Number of Mount Holes 4, Overall Height 3 3/8 in, Overall Length 3 3/8 in
Additional Information
- Country of Origin: SK
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.59
- Package Width: 3.66
- Package Height: 3.66
- Package Weight: 1.64
Product info last updated on January 27, 2026 6:15am UTC
Category: Bearings, V-belts and Power Transmission Equipment
