Flange Bearing, 4-Bolt, Ball, 100mm Bore MPN:RCJ100-XL

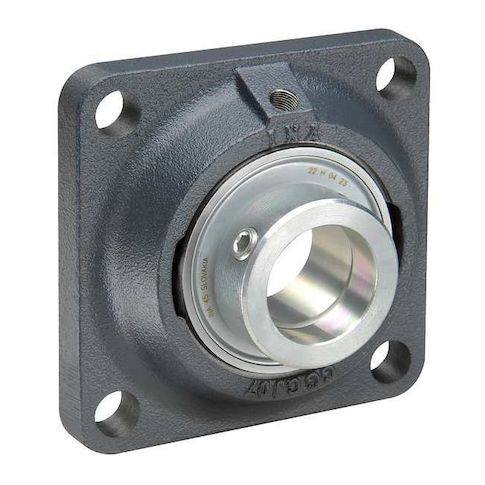

Flange Bearing, 4-Bolt, Ball, 100mm Bore
The INA 4-Bolt Flange Bearing is a robust and reliable solution for heavy-duty applications, featuring a 100mm cylindrical bore and alloy steel bearing insert. Suitable for radial ball bearing applications, it offers smooth operation and long lifespan. The double-sealed design provides excellent protection against contamination and moisture, while the lithium complex grease lubricant ensures minimal maintenance. Ideal for use in cast iron housings, this bearing is perfect for applications in industrial machinery, agricultural equipment, and heavy machinery, where high performance and durability are essential. Its fixed expansion type and wide temperature range (-30°C to 50°C) make it a versatile choice.
Top product features:
- The bearing is a radial insert ball bearing.
- The bearing is double sealed for protection from dust and moisture.
- The bearing is fixed in place and has a cast iron housing with a square design.
Top product applications:
- Heavy Duty Industrial Equipment
- Machine Tool Spindles
- Agricultural Equipment
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 100 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Mount Hole Center-to-Center Height 210 mm, Number of Mount Holes 4, Overall Height 265 mm, Overall Length 265 mm
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 91 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 11.27
- Package Height: 11.27
- Package Weight: 32.41
Product info last updated on February 1, 2026 11:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
