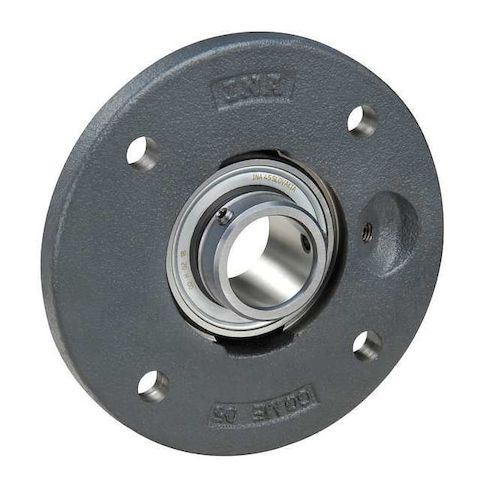

4 Holes, Circular Housing, 4 Bolt Flange Bearing, Radial Ball, 30 mm Dia, Cast Iron, Set Screw MPN:PMEY30-XL-N
4 Holes, Circular Housing, 4 Bolt Flange Bearing, Radial Ball, 30 mm Dia, Cast Iron, Set Screw
The INA 4-Bolt Flange Bearing is a robust and reliable solution for industrial applications that require high precision and durability. This ball bearing features a 30mm cylindrical bore and is designed for radial loads, making it ideal for use in machinery, equipment, and gearboxes. The alloy steel bearing insert ensures long-lasting performance in temperatures ranging from -30°C to 50°C. With a fixed expansion type and double sealed closure, this bearing provides maximum protection against contamination and wear. Suitable for use in a variety of industries, including manufacturing, mining, and construction, this bearing is a trusted choice for applications requiring high reliability and minimal maintenance.
Top product features:
- 4-Bolt flange design for secure mounting
- Double sealed closure for protection against contaminants and moisture
- Radial ball bearing design for smooth rotation and reduced friction
Top product applications:
- Industrial machinery, such as pumps and gearboxes, require durable bearings to support heavy loads and withstand harsh operating conditions.
- Agricultural equipment, like tractors and combines, benefit from the rugged construction and reliable performance of 4-bolt flange bearings.
- Automotive applications, including engines and transmissions, can utilize these bearings to provide smooth operation and extended lifespan in demanding environments.
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 4, Overall Height 125 mm, Overall Length 125 mm, Overall Width 19 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 71 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.28
- Package Width: 5.31
- Package Height: 5.31
- Package Weight: 2.38
Product info last updated on February 4, 2026 10:46pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
