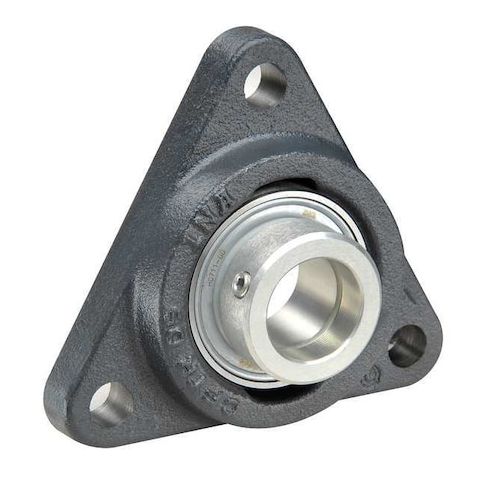

3 Mount Holes, Triangular, 3 Bolt Flange Bearing, Radial Ball, 25 mm Dia, Cast Iron, Eccentric Locking Collar Locking MPN:PCFTR25-XL
3 Mount Holes, Triangular, 3 Bolt Flange Bearing, Radial Ball, 25 mm Dia, Cast Iron, Eccentric Locking Collar Locking
This INA 3-Bolt Flange Bearing is a high-performance radial ball bearing designed for demanding applications. Its alloy steel bearing insert and cast iron housing provide exceptional strength and durability. With a maximum temperature rating of 50°C and a minimum temperature rating of -30°C, this bearing can withstand a wide range of operating conditions. Its double-sealed closure ensures long-lasting lubrication and protection from contaminants. Suitable for use in industrial machinery, equipment, and automotive applications, this bearing is ideal for heavy-duty load-bearing and high-speed rotation. Its compact design and fixed expansion type make it easy to install and maintain.
Top product features:
- Double sealed for protection against dust and moisture
- Radial ball bearing insert for smooth rotation and low friction
- Fixed expansion type for secure fit and vibration resistance
Top product applications:
- Heavy machinery and equipment
- Industrial automation and robotics
- Aerospace and defense applications
3 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Center Height 36 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Triangular, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 3, Overall Height 97 mm, Overall Length 97 mm, Overall Width 36 mm
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.20
- Package Height: 2.10
- Package Weight: 1.45
Product info last updated on March 11, 2026 8:33pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
