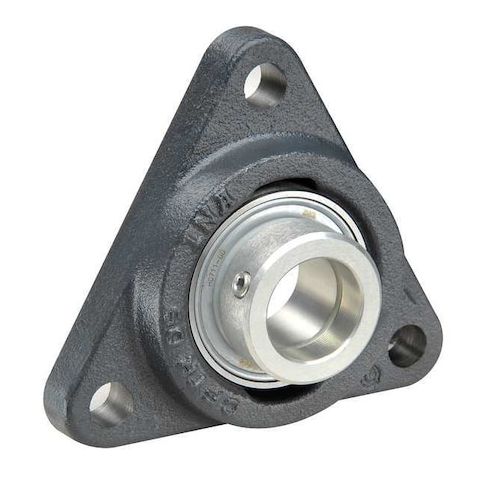

3 Mount Holes, Triangular, 3 Bolt Flange Bearing, Radial Ball, 35 mm Dia, Cast Iron, Eccentric Locking Collar Locking MPN:PCFTR35-XL
3 Mount Holes, Triangular, 3 Bolt Flange Bearing, Radial Ball, 35 mm Dia, Cast Iron, Eccentric Locking Collar Locking
The INA 3-Bolt Flange Bearing is a reliable and versatile solution for various applications. This robust bearing features a 35mm cylindrical bore and a radial ball bearing insert made from alloy steel, ensuring smooth operation and long-lasting performance. With a temperature range of -30°C to 50°C, it can withstand demanding environments. The double-sealed design and lithium complex grease provide excellent protection against dust and moisture. Suitable for use in industrial machinery, construction equipment, and agricultural vehicles, this bearing offers reliable support and reduces maintenance needs, making it an ideal choice for heavy-duty applications.
Top product features:
- Radial ball bearing design provides smooth rotation and minimal friction
- Double sealed closure protects the bearing from dust and moisture
- Lithium complex grease lubricant reduces wear and tear on moving parts
Top product applications:
- Pump shaft bearing
- Gearbox bearing
- Conveyor belt pulley bearing
3 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 35 mm, Bore Type Cylindrical, Center Height 44 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Triangular, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 3, Overall Height 128 mm, Overall Length 128 mm, Overall Width 45.1 mm
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.92
- Package Width: 5.44
- Package Height: 5.44
- Package Weight: 3.55
Product info last updated on January 31, 2026 2:40am UTC
Category: Bearings, V-belts and Power Transmission Equipment
