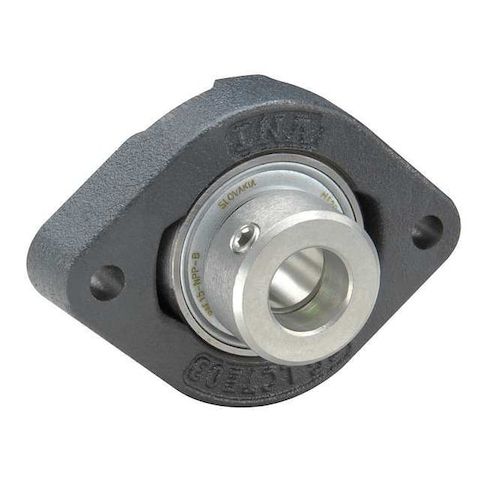

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 17 mm Dia, Cast Iron, Eccentric Locking Collar MPN:FLCTE17-XL
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 17 mm Dia, Cast Iron, Eccentric Locking Collar
The INA 2-Bolt Flange Bearing is a versatile and reliable radial ball bearing suitable for a variety of applications, including industrial machinery, agricultural equipment, and automotive components. Its robust alloy steel construction and cast iron housing ensure durability and resistance to harsh environments. The double-sealed design protects against dust and moisture, while the lithium complex grease lubricant maintains optimal performance. With a temperature range of -30 to 50 degrees C, this bearing can withstand extreme temperatures. Its compact design and fixed expansion type make it ideal for applications where space is limited, such as in gearboxes and pulleys.
Top product features:
- 2-Bolt Flange Bearing design allows for easy installation and secure mounting
- Radial Ball bearing insert provides smooth rotation and reduced friction
- Double sealed closure protects the bearing from dust and moisture
Top product applications:
- Conveyor systems
- Automated machinery
- Heavy equipment
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 17 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 58.7 mm, Overall Length 81 mm, Overall Width 30.5 mm, Rolling Element Rows 1
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 3.10
- Package Height: 1.40
- Package Weight: 0.70
Product info last updated on February 22, 2026 4:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
