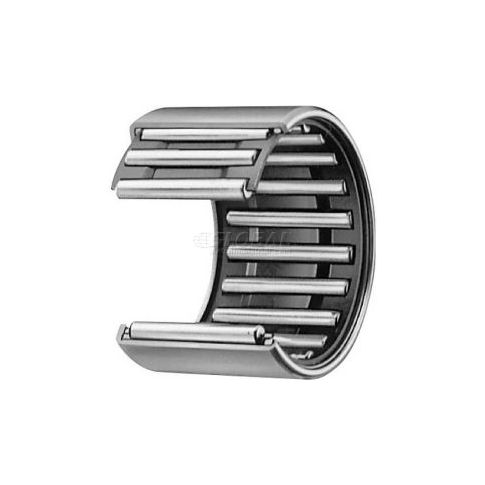

IKO Shell Type Needle Roller Bearing INCH 3/4 Bore 1" OD .750" Width BA1212ZOH
IKO Shell Type Needle Roller Bearing INCH 3/4 Bore 1" OD .750" Width
The IKO Shell Type Needle Roller Bearing is a compact and high-load bearing solution ideal for applications where space is limited. Suitable for use with shafts without inner rings, this bearing features a thin outer ring made from special steel plate and needle rollers, providing a high load rating and minimal weight. With proper lubrication, this bearing can be used in high-speed applications, making it a versatile choice for various industries, including automotive, aerospace, and industrial machinery. Its compact design and high load capacity make it an excellent choice for applications where precision and reliability are crucial.
Top product features:
- Shell type needle roller bearing consists of an outer ring made from accurately drawn thin special steel plate needle rollers and with or without retainer.
- The shell type needle roller bearings have the smallest sectional height and weight among all of needle roller bearings and have relatively high load ratings.
- Needle roller bearing with retainer can be used for high-speed applications as the retainer and the thrust ring precisely guide the rollers.
Top product applications:
- High-speed machinery such as pumps, compressors, and gearboxes
- Applications requiring high load ratings and minimal space such as robotics and automation equipment
- Precision instruments and devices that require a high degree of accuracy and stability such as medical devices and laboratory equipment
Iko shell type needle roller bearing inch 3/4 bore 1" od .750" width part# ba1212zoh iko shell type needle roller bearing (often called drawn cup) consists of outer ring that is made from accurately drawn thin special steel plate needle rollers and with or without retainer. The shell type needle roller bearings have smallest sectional height and weight among all of needle roller bearings and have relatively high load ratings. Needle roller bearing with retainer can be used for high-speed applications as the retainer and the thrust ring precisely guide the rollers. Shell type needle roller bearings are not provided with pre-packed lubricant. Proper lubrication must be applied when these bearings are used. Shell type needle roller bearings are generally used with shafts without inner rings. 0.2mra or less shaft surface finish and hrc 58 to 64 shaft hardness are recommended. When these requirements are not possible use of iko inner rings are recommended. Accuracy the outer ring of shell type needle roller bearings cannot avoid deformation by heat treatment due to their thin cross sections. It is not appropriate to take a direct measurement on the outer ring. Use standard mounting dimensions shown for shaft and housing diameters. Tolerance of outer ring width is +0 to -0.20 mm.
Additional Information
- UNSPSC: 31171512
- Brand: IKO International
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: NJ
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 1.00
- Package Width: 0.75
- Package Height: 1.00
- Package Weight: 0.05
Product info last updated on May 6, 2026 5:37pm UTC
Category: Bearings
