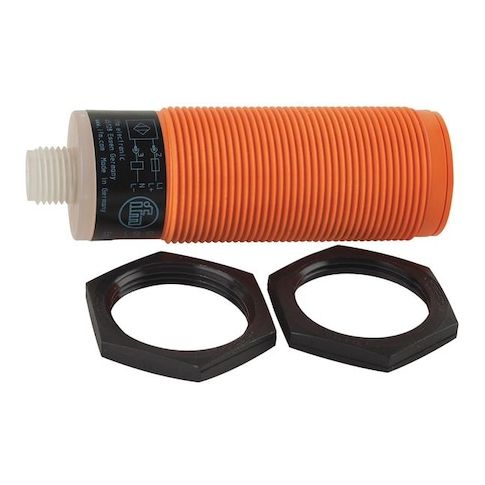

Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., PBT, 1/2 in Connector, 2 Wires, Unshielded MPN:KI0054
Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., PBT, 1/2 in Connector, 2 Wires, Unshielded
This capacitive cylindrical proximity sensor is designed for use in a variety of applications, including industrial automation, robotics, and material handling. Its compact 30mm diameter design and 90mm length make it ideal for use in tight spaces, while its 20-250V DC/AC power requirement and 10Hz operating frequency provide flexibility in system design. The sensor's 2-wire output and NO/NC output mode enable easy integration with control systems. With an IP65 and IP67 rating, it can withstand harsh environments and is suitable for use in applications such as conveyor belt monitoring, object detection, and machine guarding.
Top product features:
- Capacitive sensing technology detects objects within a 20 mm range
- Detects objects within a 30 mm diameter cylindrical area
- Operates with a power requirement of 20 to 250V DC or 30 to 250V AC
Top product applications:
- Automotive parts inspection
- Material handling equipment
- Conveyor belt monitoring
Capacitive Cylindrical Proximity Sensor, Capacitive, 30 mm, Proximity Sensor Power Requirement 20 to 250V DC, 30 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 20 mm, Proximity Sensor Electrical Connection 2 Pin 1/2 in UNF Connector, Output Mode NO/NC, IP Rating IP65, IP67, Case Material PBT, Length 90 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 150/100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.90
- Package Height: 5.20
- Package Weight: 0.25
Product info last updated on February 8, 2026 4:04am UTC
Category: Industrial Electrical Controls and Automation
