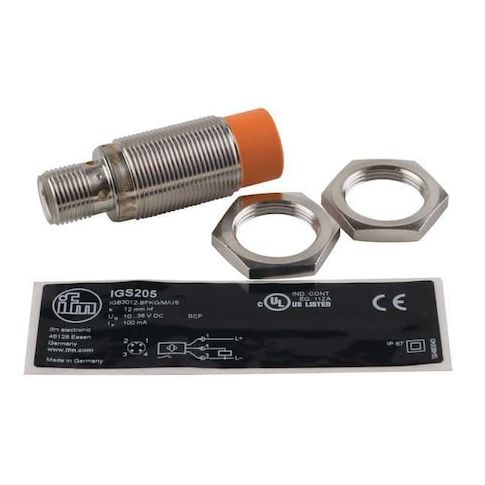

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IGS205
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded
This compact, cylindrical inductive proximity sensor is designed for use in a variety of applications, including industrial automation, robotics, and material handling. Its small 18mm diameter and 51mm length make it easy to integrate into tight spaces, while its 300Hz operating frequency and 12mm detecting distance provide accurate and reliable detection. The sensor's 10-30V DC power requirement and 3-wire PNP output circuit make it easy to integrate into existing systems. Suitable for use in harsh environments, the sensor is rated IP67 and features a durable brass construction with a white bronze coating.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects at a distance of up to 12 mm
- Operates at a frequency of 300 Hz for reliable detection
Top product applications:
- Automotive applications such as detecting the presence of a key or a sensor in a vehicle's door or trunk.
- Industrial automation applications such as detecting the presence of a machine part or a tool in a manufacturing environment.
- Medical device applications such as detecting the presence of a medical instrument or a patient's vital signs in a hospital or medical facility.
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 51 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.60
- Package Height: 0.70
- Package Weight: 0.10
Product info last updated on January 15, 2026 2:29pm UTC
Category: Industrial Electrical Controls and Automation
