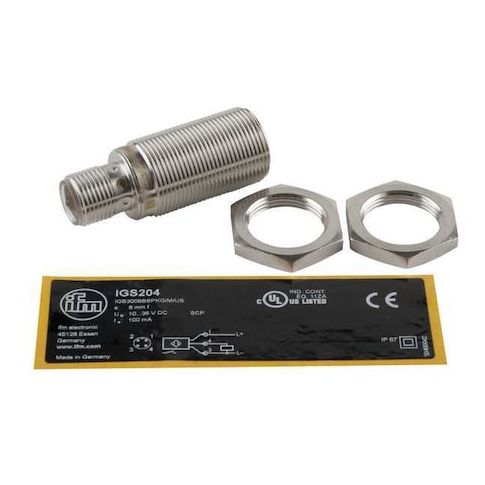

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded MPN:IGS204
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Shielded
This inductive proximity sensor is ideal for detecting objects within 8mm of its cylindrical body, which measures 18mm in diameter. Operating on 10-30V DC, it features a shielded design and can withstand temperatures ranging from -13°F to 158°F. The sensor's 3-wire PNP output circuit and NO output mode make it suitable for various applications, including industrial automation, robotics, and material handling. Its compact size, IP67 rating, and brass construction with white bronze coating ensure durability and resistance to harsh environments, making it a reliable choice for a wide range of industries and use cases.
Top product features:
- Cylindrical design allows for easy installation in tight spaces.
- Inductive technology detects objects at a distance of up to 8 mm.
- Shielding reduces electromagnetic interference and ensures reliable operation.
Top product applications:
- Automotive Industry: Used in vehicle assembly lines to detect the presence of metal parts or tools, ensuring safe and efficient production processes.
- Medical Equipment: Integrated into medical devices, such as infusion pumps or ventilators, to detect the presence of medical instruments or tubes, preventing accidental activation or disconnection.
- Material Handling Systems: Employed in warehouses and manufacturing facilities to detect the presence of pallets, containers, or other metal objects, enabling efficient and safe material handling and transportation processes.
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 46 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.80
- Package Height: 0.80
- Package Weight: 0.15
Product info last updated on March 6, 2026 10:50pm UTC
Category: Industrial Electrical Controls and Automation
