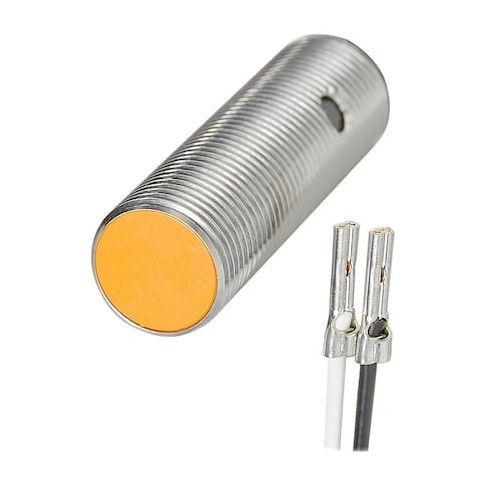

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PC, 2 m, Bare Wire, 2 Wires, Shielded MPN:IF5720
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass/PC, 2 m, Bare Wire, 2 Wires, Shielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects within a 2 mm distance. Suitable for use in various applications, such as manufacturing, material handling, and automation, it operates within a wide temperature range of -13°F to 158°F. The sensor's 2-wire PNP/NPN output and shielded design ensure accurate and noise-free detection. With a maximum current load of 150mA, it can be easily integrated into existing systems. Its compact cylindrical design and IP67 rating make it ideal for use in harsh environments, providing a durable and long-lasting solution for proximity detection needs.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Operating frequency of 1,200 Hz provides fast and reliable detection
- Shielding from electromagnetic interference reduces signal noise and improves accuracy
Top product applications:
- Automotive applications due to its resistance to vibration and extreme temperatures
- High-speed conveyor belt monitoring in manufacturing environments
- Position sensing in robotics and machine automation due to its compact size and high detection frequency
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 1,200 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 150mA
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.40
- Package Height: 0.60
- Package Weight: 0.15
Product info last updated on February 7, 2026 12:59pm UTC
Category: Industrial Electrical Controls and Automation
