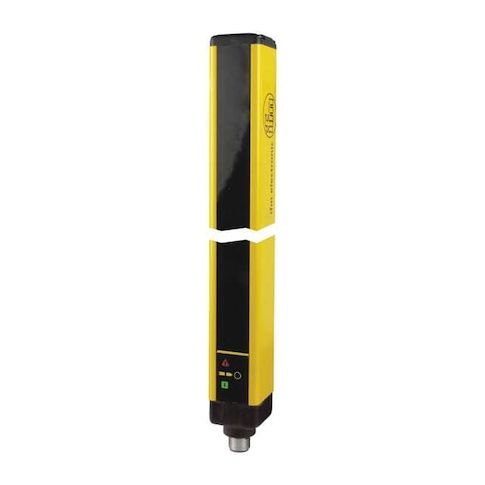

Light Curtain, 39.4 ft., 47.2"H, 40 Beams MPN:OY048S
Light Curtain, 39.4 ft., 47.2"H, 40 Beams
The IFM Light Curtain is a reliable and efficient safety solution for industrial applications. Its 40 beams and 39.4 ft maximum sensing distance provide a wide coverage area, making it ideal for use in manufacturing lines, material handling systems, and other areas where personnel and equipment need to be protected from hazardous situations. The light curtain's fast response time of 4-7.5 msec ensures quick detection and reaction to potential hazards, reducing the risk of accidents and injuries. Its compact design and IP65/67 rating make it suitable for use in harsh environments, providing a safe and efficient solution for various industries.
Top product features:
- Detects objects at a distance of up to 39.4 ft
- Has 40 beams spaced 30 mm apart
- Responds in 4 to 7.5 msec
Top product applications:
- Machine Guarding
- Material Handling Systems
- Automotive Assembly Lines
Light Curtain, Max. Sensing Distance 39.4 ft, Input Voltage 24V DC, Safety Output Ratings 400 mA @ 24V DC, Color Yellow, Housing Material Aluminum, Protected Height 1,210 mm, IP Rating IP65, IP67, Beam Spacing 30 mm, Number of Beams 40, Light Source 950 nm IR LED, Response Time 4 to 7.5 msec, Overall Height 49.72 in, Width 1.1 in, Depth 1.18 in, Cable Length 100 m, Cable Connection Receiver 8 Pin, M12, Cable Connection Transmitter 5 Pin, M12, Number of Aux. Outputs 1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 52.00
- Package Width: 7.70
- Package Height: 5.50
- Package Weight: 9.20
Product info last updated on February 5, 2026 3:58pm UTC
Category: Industrial Electrical Controls and Automation
