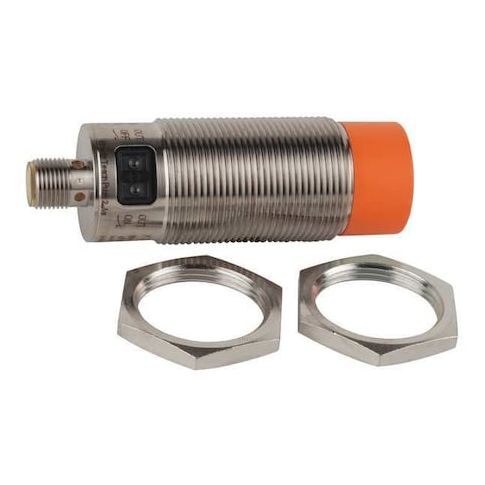

Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded MPN:KI5086
Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded
This capacitive cylindrical proximity sensor is designed for detecting objects in a wide range of applications, including industrial automation, material handling, and medical devices. Its compact 30mm diameter and 90mm length make it ideal for use in tight spaces. The sensor's 10-36V DC power requirement and 100mA current load ensure reliable operation in a variety of environments. With a maximum detecting distance of 15mm and IP65/IP67 ratings, it provides accurate and durable detection in harsh conditions. Suitable for use in applications such as conveyor belt monitoring, object detection, and level sensing.
Top product features:
- Capacitive sensing technology allows for non-contact detection of objects
- Detects objects at a maximum distance of 15 mm
- Operates within a temperature range of -13 to 176 degrees Fahrenheit
Top product applications:
- Automotive parts assembly and inspection
- Material handling and logistics systems
- Food and beverage processing equipment
Capacitive Cylindrical Proximity Sensor, Capacitive, 30 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP/NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO/NC, IP Rating IP65, IP67, Case Material 316L Stainless Steel, Length 90 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.27
Product info last updated on February 22, 2026 4:43am UTC
Category: Industrial Electrical Controls and Automation
