Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 1450 psi Range, Stainless Steel MPN:PN4222
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7051572
Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 1450 psi Range, Stainless Steel

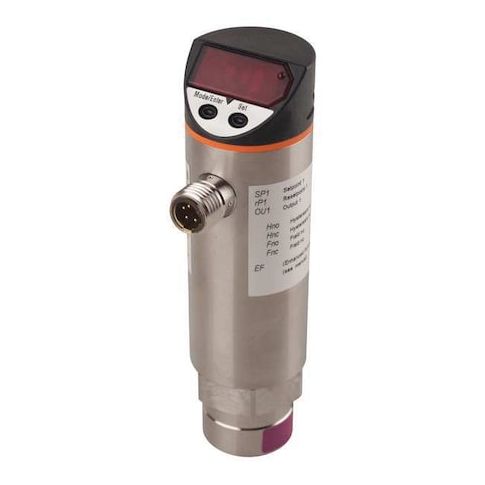

This digital pressure sensor is designed for use in a variety of applications, including industrial processes and liquid handling systems. It offers a high level of accuracy and reliability, with a range of 0 to 1450 psi and a burst pressure of 9400 psi. The sensor is compatible with air and liquids, and features a triac circuit type and 2.5A output current. Its stainless steel construction and IP67 rating make it suitable for use in harsh environments, and it can be powered by a wide range of AC voltages. It is ideal for applications requiring precise pressure measurement and control.
Top product features:
- Pressure switch with adjustable set points for on and off
- Measures pressure up to 1450 psi
- Triac circuit type for high current output
Top product applications:
- Pressure Switches for Compressed Air Systems
- Pressure Sensors for Industrial Automation
- High-Pressure Monitoring Systems for Liquids
Digital Pressure Sensor, Power Required 45 to 65 Hz, 90 to 250V AC, Range 0 to 1450 psi, Compatible With Air and Liquids, Circuit Type Triac, Output Current 2.5A @ 20 Degrees C, Contact Form SPST, On Set Point 10 to 1450 psi, Off Set Point 10 to 1440 psi, Burst Pressure 9,400 psi, Process Connection 1/4 in FNPT, IP Rating IP67, Housing Material Stainless Steel, Wetted Materials Stainless Steel, Electrical Connection 5 Pin 1/2 in UNF Connector, Temp. Range 13 Degrees to 176 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 3.60
- Package Height: 2.50
- Package Weight: 0.85
Product info last updated on February 3, 2026 7:59am UTC
Category: Industrial Electrical Controls and Automation
