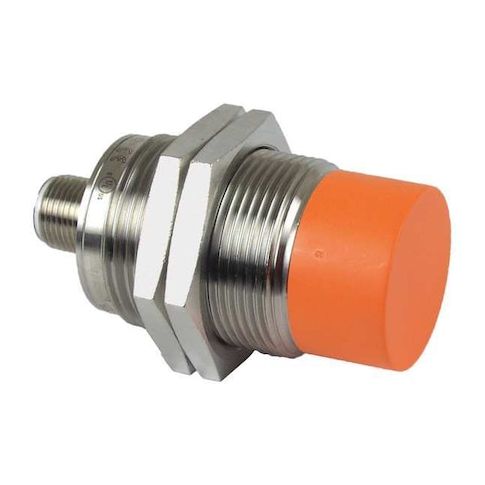

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:IIS205
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive cylindrical proximity sensor is a reliable and versatile solution for detecting objects in a variety of industrial settings. With its compact 30mm diameter and 50mm length, it can be easily integrated into existing systems, providing accurate detection up to 22mm with a 100Hz operating frequency. The sensor's 3-wire PNP output and 10-30V DC power requirement make it easy to integrate into most control systems. Ideal for use in harsh environments, the sensor features an IP67 rating and operates in temperatures ranging from -13°F to 158°F. Suitable for applications such as conveyor belt monitoring, level detection, and object counting.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects within 22 mm distance
- Operates at a frequency of 100 Hz
Top product applications:
- Automotive Industry: The inductive proximity sensor can be used in automotive applications such as detecting the presence of a key or a part in a specific location.
- Material Handling: The sensor can be used in material handling systems to detect the presence of objects or parts in a specific location, allowing for automation and increased efficiency.
- Robotics and Automation: The sensor can be used in robotics and automation applications to detect the presence of objects or parts in a specific location, allowing for precise and accurate movements.
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 50 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 2.75
- Package Height: 1.57
- Package Weight: 0.25
Product info last updated on February 12, 2026 8:25pm UTC
Category: Industrial Electrical Controls and Automation
