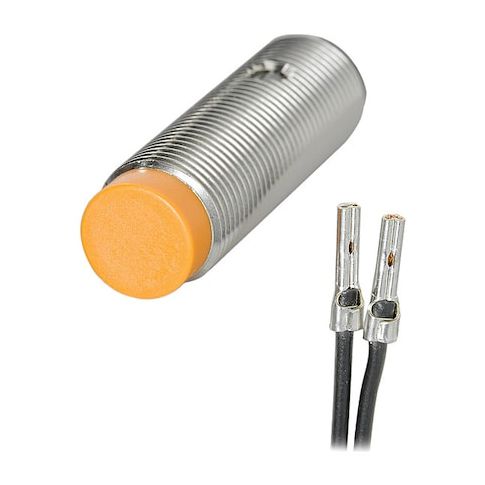

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded MPN:IF5719
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in industrial and commercial settings. With a compact cylindrical design and a detecting distance of up to 4 mm, it is ideal for applications such as material handling, packaging, and automation. The sensor's 10-36V DC power requirement and 1,500 Hz operating frequency make it suitable for a wide range of environments. Its brass construction and IP67 rating ensure durability and resistance to harsh conditions, while its 2-wire PNP/NPN output provides flexibility in system design.
Top product features:
- Cylindrical shape allows for easy placement in tight spaces
- Detects objects at a maximum distance of 4 mm
- Operates at a frequency of 1,500 Hz
Top product applications:
- Automotive applications due to its high temperature range and corrosion resistance
- Medical device manufacturing due to its compact size and high reliability
- Industrial automation applications due to its long sensing distance and high vibration resistance
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 1,500 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6, IP Rating IP67, Case Material Brass White Bronze Coated, Length 40 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 150mA
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.19
Product info last updated on February 10, 2026 11:33pm UTC
Category: Industrial Electrical Controls and Automation
