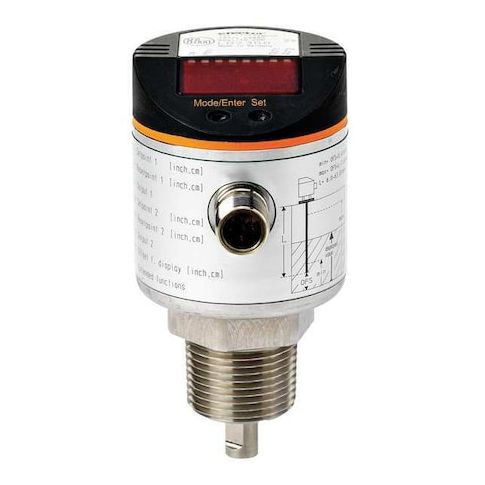

Level Sensor, G3/4 NPT, 2x NO/NC MPN:LR7000
Level Sensor, G3/4 NPT, 2x NO/NC
This electronic level sensor is a guided wave radar device designed for measuring the level of oils, water, and other media in vertical applications. The stainless steel construction ensures durability and resistance to corrosion, while the +/-7 mm accuracy provides reliable measurements. The sensor's 63-inch range and 232 psi operating pressure make it suitable for a variety of industrial applications, including tank monitoring and process control. The 4-wire output configuration and 2x NO/NC outputs enable easy integration with control systems. The compact design and IP67 rating make it ideal for use in harsh environments.
Top product features:
- Measures liquids with an accuracy of +/-7 mm
- Detects liquids of various types, including oils and water
- Operates in a wide range of temperatures, up to 176 Degrees F
Top product applications:
- Monitoring oil levels in industrial machinery
- Measuring water levels in storage tanks
- Monitoring liquid levels in chemical processing equipment
Electronic Level Sensor, Product Type Guided Wave Radar, Connection Size 3/4 in, For Media Type Oils, Water, Body Material Stainless Steel, Accuracy +/-7 mm, Range 63 in, Stem Length 63 in, Operating Pressure - Maximum 232 psi, Media Temperature - Maximum 176 Degrees F, Mounting Orientation Vertical, Enclosure Rating IP67, Float Diameter 1/4 in, Number of Outputs - Digital 2, Float Length Not Applicable, Output Wire Configuration 4-Wire, Probe Type Rod, Overall Length 2.5 in
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 3.60
- Package Height: 2.60
- Package Weight: 0.80
Product info last updated on February 15, 2026 5:19am UTC
Category: Industrial Electrical Controls and Automation
