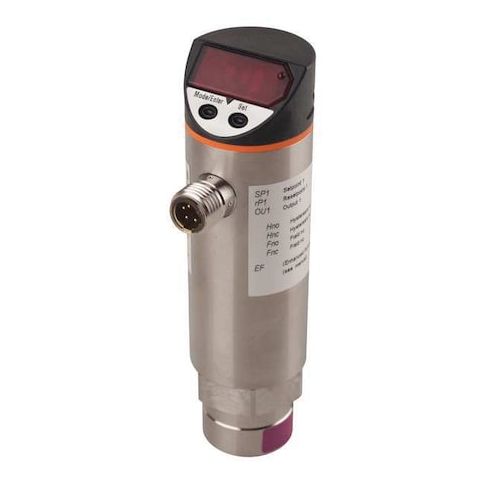

Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 36.3 psi Range, Stainless Steel MPN:PN4226

This digital pressure switch from IFM is a reliable and versatile solution for a wide range of applications. Suitable for use with both air and liquids, it provides accurate pressure monitoring and control in harsh environments. The stainless steel construction ensures durability and resistance to corrosion, while the triac circuit type and 2.5A output current provide a robust and efficient switching mechanism. Ideal for use in industries such as oil and gas, chemical processing, and food and beverage, this pressure switch offers reliable performance and long-term stability. Its compact design and easy installation make it a convenient addition to any system.

Top product features:

• Measures pressure in the range of 0 to 36.3 psi
• Has a stainless steel housing and wetted materials for corrosion resistance
• Operates with a power frequency of 45 to 65 Hz and can be powered with 90 to 250V AC

Top product applications:

• Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 36.3 psi Range, Stainless Steel from IFM is used in Industrial Automation to regulate and control pressure in various systems.
• Digital Pressure Sensor, Power Required 45 to 65 Hz, 90 to 250V AC, Range 0 to 36.3 psi, Compatible With Air and Liquids, Circuit Type Triac, Output Current 2.5A @ 20 Degrees C, Contact Form SPST, On Set Point 0.4 to 36.3 psi, Off Set Point 0.2 to 36.2 psi, Burst Pressure 725 psi, Process Connection 1/4 in FNPT, IP Rating IP65, Housing Material Stainless Steel, Wetted Materials Stainless Steel, Electrical Connection 5 Pin 1/2 in UNF Connector, Temp. Range 13 Degrees to 176 Degrees F is used in Oil and Gas Industry to monitor and control pressure in pipelines.
• Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 36.3 psi Range, Stainless Steel from IFM is used in Aerospace Industry to regulate and control pressure in fuel systems and other critical applications.
