Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 145 psi Range, Stainless Steel MPN:PN4224
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6796325

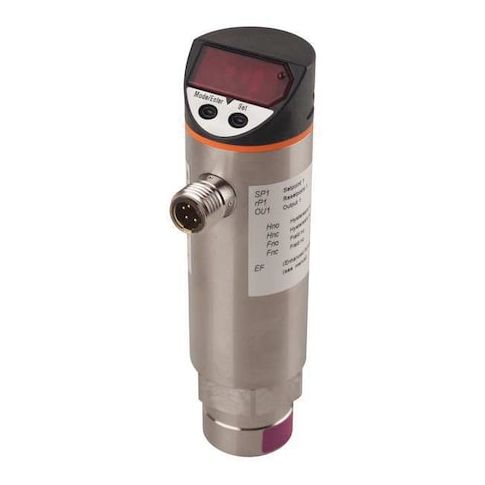

Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 145 psi Range, Stainless Steel
The IFM Pressure Switch is a reliable and versatile solution for monitoring pressure levels in various industrial applications. Suitable for use with air and liquids, this digital pressure sensor provides accurate readings within a 0 to 145 psi range. Its stainless steel construction ensures durability and resistance to corrosion, while the triac circuit type and 2.5A output current enable efficient control of processes. Ideal for use in food and beverage, pharmaceutical, and chemical processing industries, the pressure switch offers precise pressure monitoring and control, ensuring optimal system performance and efficiency.
Top product features:
- Pressure range of 0 to 145 psi allows for precise measurement of various pressure levels.
- Triac circuit type enables reliable and efficient switching of electrical current.
- Contact form SPST allows for simple and straightforward switching between on and off states.
Top product applications:
- Pressure switch for use in air compressors to monitor and control pressure levels
- Pressure switch for use in hydraulic systems to detect and respond to changes in pressure
- Pressure switch for use in chemical processing plants to monitor and control pressure levels in liquid handling systems
Digital Pressure Sensor, Power Required 45 to 65 Hz, 90 to 250V AC, Range 0 to 145 psi, Compatible With Air and Liquids, Circuit Type Triac, Output Current 2.5A @ 20 Degrees C, Contact Form SPST, On Set Point 1 to 145 psi, Off Set Point 1 to 144 psi, Burst Pressure 2,175 psi, Process Connection 1/4 in FNPT, IP Rating IP65, Housing Material Stainless Steel, Wetted Materials Stainless Steel, Electrical Connection 5 Pin 1/2 in UNF Connector, Temp. Range 13 Degrees to 176 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 3.60
- Package Height: 2.60
- Package Weight: 0.80
Product info last updated on February 7, 2026 1:28am UTC
Category: Industrial Electrical Controls and Automation
