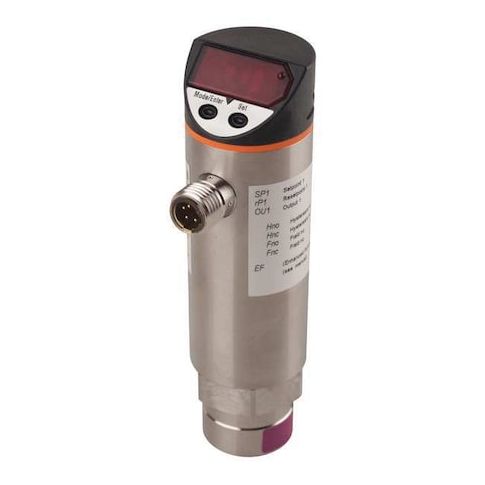

Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 3630 psi Range, Stainless Steel MPN:PN4221
Pressure Switch, Standard, SPST, 1/4 in NPT, 0 to 3630 psi Range, Stainless Steel
This digital pressure sensor is a reliable and accurate solution for a wide range of applications, including industrial processes, laboratory settings, and research facilities. Its stainless steel construction and IP67 rating ensure durability and resistance to harsh environments, making it suitable for use with air and liquids. The sensor's adjustable set points and high burst pressure allow for precise control and safety in high-pressure applications. With a compact design and easy-to-use interface, this pressure switch is an ideal choice for industries such as oil and gas, chemical processing, and pharmaceuticals.
Top product features:
- Measures pressure up to 3630 psi
- Has a stainless steel housing and wetted materials for corrosion resistance
- Has a triac circuit type for high current output capability
Top product applications:
- Pressure measurement in industrial applications such as oil and gas production
- Monitoring pressure in hydraulic systems for heavy machinery
- Measuring pressure in chemical processing and manufacturing plants
Digital Pressure Sensor, Power Required 45 to 65 Hz, 90 to 250V AC, Range 0 to 3630 psi, Compatible With Air and Liquids, Circuit Type Triac, Output Current 2.5A @ 20 Degrees C, Contact Form SPST, On Set Point 40 to 3630 psi, Off Set Point 20 to 3610 psi, Burst Pressure 12,300 psi, Process Connection 1/4 in FNPT, IP Rating IP67, Housing Material Stainless Steel, Wetted Materials Stainless Steel, Electrical Connection 5 Pin 1/2 in UNF Connector, Temp. Range 13 Degrees to 176 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 3.60
- Package Height: 2.50
- Package Weight: 0.86
