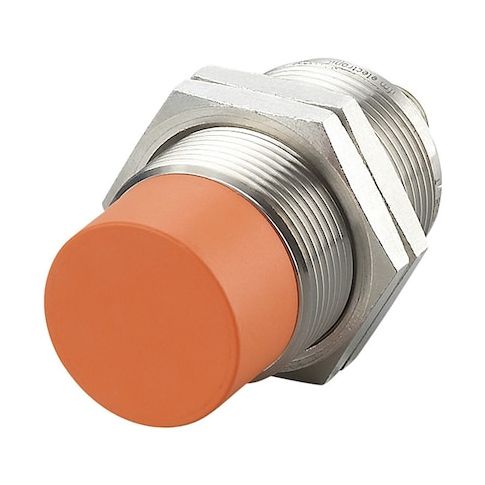

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded MPN:IIS211
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded
The IFM Inductive Cylindrical Proximity Sensor is a reliable and versatile solution for detecting objects in a variety of industrial settings. Its stainless steel construction and IP67 rating make it suitable for harsh environments, while its 10-30V DC power requirement and 100Hz operating frequency ensure smooth and efficient operation. With a maximum detecting distance of 22mm and a 3-wire PNP output, this sensor is perfect for applications such as material handling, robotics, and automation. Its compact size and robust design make it an ideal choice for use in tight spaces and high-traffic areas, providing accurate and reliable object detection with minimal maintenance.
Top product features:
- Cylindrical design allows for easy installation in tight spaces
- Detects objects at a maximum distance of 22 mm
- Operates at a frequency of 100 Hz with a 3-wire PNP output circuit
Top product applications:
- Material Handling Equipment
- Automotive Assembly Lines
- Food Processing Machinery
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material 316L Stainless Steel, Length 70 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.80
- Package Height: 1.30
- Package Weight: 0.26
Product info last updated on January 14, 2026 8:11pm UTC
Category: Industrial Electrical Controls and Automation
