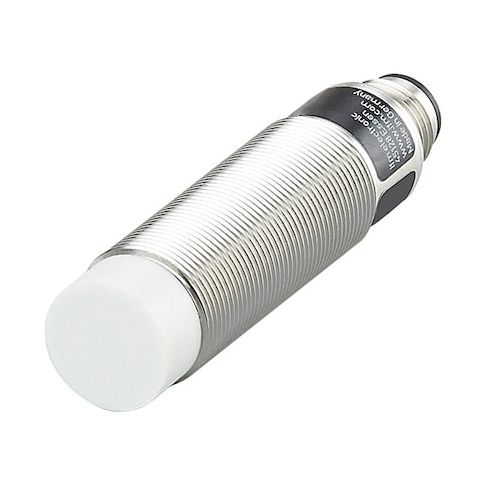

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass/PA/PBT, 1/2 in Connector, 2 Wires, Unshielded MPN:IG0345
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6694624
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass/PA/PBT, 1/2 in Connector, 2 Wires, Unshielded
This inductive cylindrical proximity sensor is a reliable and versatile solution for a wide range of applications, including industrial automation, material handling, and quality control. Its compact design and durable construction make it easy to integrate into existing systems, while its high sensitivity and adjustable operating frequency enable precise detection of metal objects within a 12mm range. Suitable for use in harsh environments, this sensor withstands temperatures from -13°F to 158°F and is IP67 rated for protection against dust and water. Ideal for use in manufacturing, warehousing, and logistics settings, this sensor helps improve efficiency and accuracy.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Detects objects up to 12 mm away
- Operates over a wide range of frequencies (25 Hz AC/90 Hz DC)
Top product applications:
- Material handling and automation systems
- Machine monitoring and control systems
- Automotive and industrial parts inspection
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/90 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 72 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/100mA
Additional Information
- Country of Origin: RO
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 2.90
- Package Height: 1.20
- Package Weight: 0.15
Product info last updated on February 3, 2026 10:07am UTC
Category: Industrial Electrical Controls and Automation
