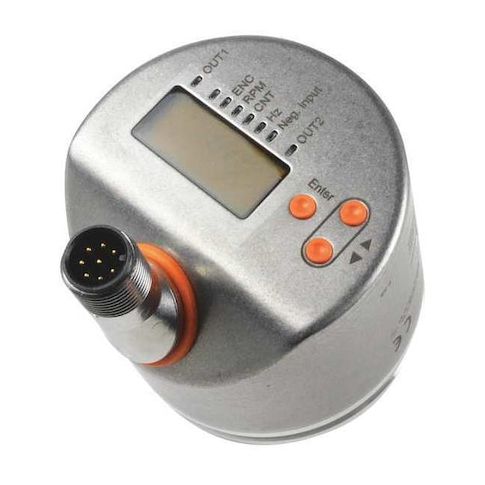

Encoder, Output A, B, Z, Stainless, 54mm D MPN:RUP500
Encoder, Output A, B, Z, Stainless, 54mm D
This high-performance encoder is designed for demanding industrial applications, providing precise position and speed measurements. Its stainless steel construction ensures durability and resistance to harsh environments. With a maximum speed of 12,000 RPM and a resolution of 10,000 nsec, it's ideal for use in robotics, CNC machines, and other high-speed applications. The encoder's compact design and easy-to-use HTL and TTL output types make it simple to integrate into existing systems. Its reliability and accuracy make it a valuable asset for industries that require precise control and measurement.
Top product features:
- Output Type HTL, TTL
- Hollow Shaft Diameter 6 mm
- Maximum Speed 12,000 RPM
Top product applications:
- Automation in the food and beverage industry
- Machine tool control and monitoring
- Robotics and robotic arm control
Encoder, Parallel, Output Type HTL, TTL, Power Supply 4.75 to 30 VDC Adapter, Shaft Type Hollow, Shaft Diameter 6 mm, Starting Torque 150 gf-cm, Rotor Inertia 80 g/sq cm, Maximum Speed 12,000 RPM, Cable Length 328 2/25 ft, Cable Connection M12 8 Pin Plug, Rear, Side Cable Entry Location, Overall Diameter 2 5/16 in, Overall Width 58 mm, Overall Depth 64 mm, Standards CE, Encoder Style Solid Shaft, Encoder Type Incremental, Overall Length 78 mm, Resolution 10,000 nsec, Voltage 4.75-30V DC
Additional Information
- Country of Origin: PL
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.60
- Package Height: 4.00
- Package Weight: 0.95
Product info last updated on February 2, 2026 6:43am UTC
Category: Motors
