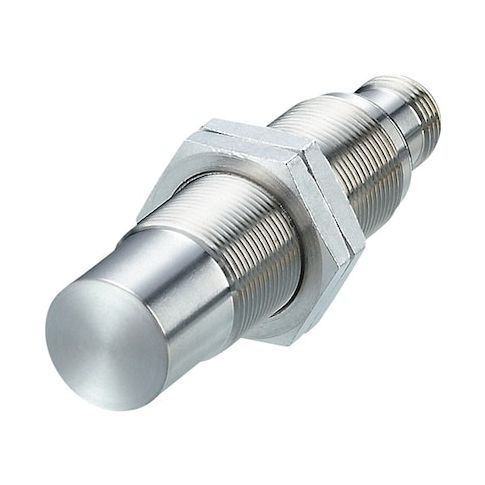

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded MPN:IGT249
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and versatile solution for detecting objects in a wide range of applications. Its compact cylindrical design and 18mm diameter make it easy to integrate into existing systems, while its 10-36V DC power requirement and 500Hz operating frequency ensure seamless operation. The sensor's 3-wire PNP output and 100mA current load capacity make it suitable for high-demand applications. With a maximum detecting distance of 12mm and a robust 316L stainless steel construction, this sensor is ideal for use in harsh environments, such as food processing, pharmaceutical manufacturing, and heavy industry.
Top product features:
- Cylindrical shape allows for easy mounting and installation in tight spaces.
- Detects objects up to 12 mm away with a frequency of 500 Hz.
- Operates over a temperature range of 32°F to 212°F, ensuring reliable performance in various environments.
Top product applications:
- Material handling systems for detecting objects on conveyor belts
- Automated assembly lines for detecting metal parts during production
- Medical equipment for detecting the presence of medical instruments or tools
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP65, IP67, IP68, IP69K, Case Material 316L Stainless Steel, Length 70 mm, Operating Temp. Range 32 Degrees to 212 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.15
Product info last updated on March 5, 2026 6:05pm UTC
Category: Industrial Electrical Controls and Automation
