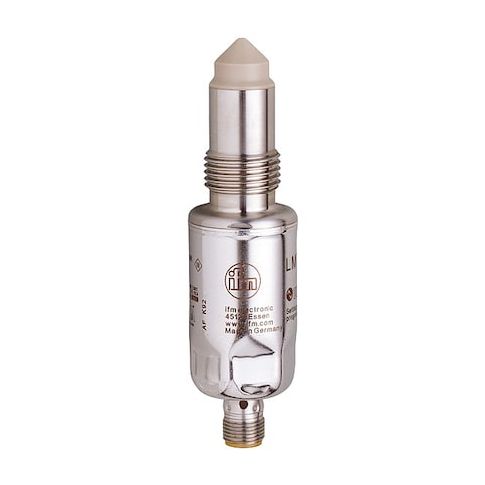

Point Level Sensor, 113 mm L MPN:LMT100
Point Level Sensor, 113 mm L
This Point Level Sensor is designed for use in a variety of applications, including monitoring nonhazardous liquids, powders, and viscous fluids. Its stainless steel body ensures durability and resistance to corrosion, while its accuracy of +/-2 mm provides reliable measurements. The sensor can be mounted horizontally or vertically and is rated IP68 and IP69K for protection against harsh environments. With two digital outputs and a 4-wire configuration, it's suitable for a range of industrial applications, including manufacturing, processing, and storage facilities. Its compact design and easy installation make it a convenient choice for monitoring fluid levels in a variety of settings.
Top product features:
- Measures nonhazardous liquids, powders, and viscous fluids
- Provides two digital outputs
- Operates in pressures up to 580 psi and temperatures up to 100°F
Top product applications:
- Monitoring the level of nonhazardous liquids in a chemical processing tank
- Measuring the height of powders in a storage silo
- Detecting the presence of viscous fluids in a laboratory setting
Point Level Sensor, Product Type Point Level Sensor, Connection Size 1/2 in, For Media Type Nonhazardous Liquids, Powders, Viscous Fluids, Body Material Stainless Steel, Accuracy +/-2 mm, Range 0.4 in, Stem Length 3/8 in, Operating Pressure - Maximum 580 psi, Media Temperature - Maximum 100 Degrees F, Mounting Orientation Horizontal, Vertical, Enclosure Rating IP68, IP69K, Float Diameter 1/2 in, Number of Outputs - Digital 2, Float Length Not Applicable, Output Wire Configuration 4-Wire
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 5.00
- Package Height: 4.00
- Package Weight: 0.38
Product info last updated on March 6, 2026 12:57am UTC
Category: Industrial Electrical Controls and Automation
