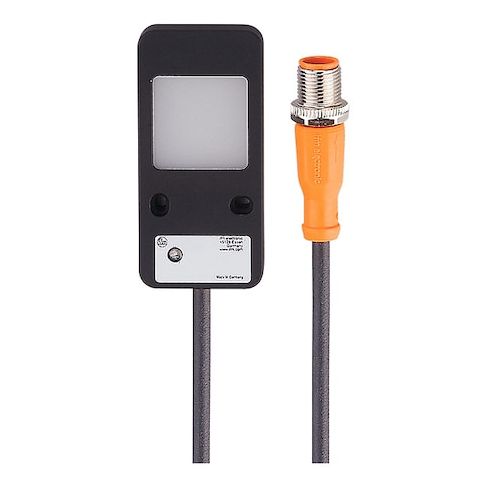

Backlight Illumination Unit, 80 mA MPN:O2D941
Backlight Illumination Unit, 80 mA
This Backlight Illumination Unit from IFM is a reliable and efficient solution for various applications, including industrial automation and control systems. Its compact design, measuring 70.5 mm in length and 33.4 mm in width, makes it easy to integrate into tight spaces. The unit's 24V DC operating voltage and 80 mA current consumption ensure low power consumption and reduced heat generation. With a maximum ambient temperature of 50°C and protection features such as IP54 and overheat protection, this unit can withstand harsh environments. Suitable for use in a range of industries, including manufacturing, logistics, and food processing.
Top product features:
- Backlight Illumination Unit provides a 25 mm x 25 mm illuminated field
- Operates at a maximum ambient temperature of 50 Degrees C
- Protects against environmental factors with IP54 rating
Top product applications:
- Industrial control panels
- Automotive display backlighting
- Medical device backlighting
Backlight Illumination Unit, Current Consumption 80 mA, Design Backlight, Electrical Connection Type M12 Connector, Housing Material Aluminum, Illuminated Field 25 mm x 25 mm, Lens Material Glass, Maximum Ambient Temperature 50 Degrees C, Minimum Ambient Temperature -10 Degrees C, Operating Voltage 24V DC, Overall Length 70.5 mm, Overall Width 33.4 mm, Protection Features IP54, Overheat Protection, Protection Class III, Standards CE, EN 62471, UKCA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.35
Product info last updated on February 18, 2026 11:07pm UTC
Category: Task Lights
