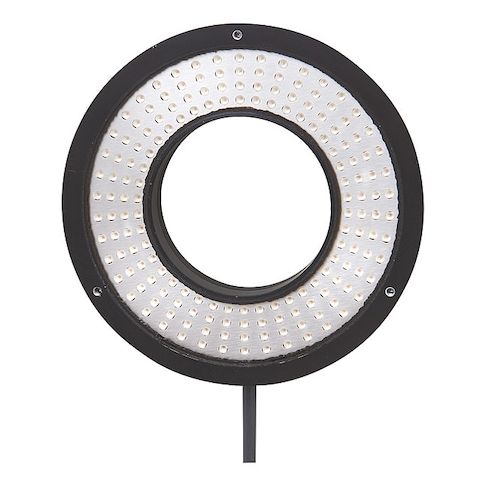

Ring Light Illumination Unit, 800 mA MPN:O2D919
Ring Light Illumination Unit, 800 mA
The Ring Light Illumination Unit from IFM provides a reliable and efficient lighting solution for a variety of applications. Suitable for use in industrial settings, this unit offers a high-intensity illumination field of 66 mm (internal) and 106 mm (external) with a maximum ambient temperature of 55°C and minimum ambient temperature of -10°C. Its compact design and aluminum black anodized housing make it a durable and long-lasting option. With overheat protection and IP65 rating, this unit is perfect for use in harsh environments, including machine vision, quality control, and inspection applications.
Top product features:
- Ring Light Illumination Unit provides a 66 mm illuminated field internally and 106 mm externally.
- The unit has overheat protection for safe operation.
- The unit features a design ring for a unique and functional aesthetic.
Top product applications:
- Medical imaging equipment for precise lighting in critical care settings
- Automotive inspection stations for enhanced visibility of vehicle components
- Photography and videography studios for soft, even lighting and reduced shadows
Ring Light Illumination Unit, Current Consumption 800 mA, Design Ring, Electrical Connection Type M12 Connector, Housing Material Aluminum Black Anodized, Illuminated Field 66 mm (Internal)/106 mm (External), Lens Material Glass, Maximum Ambient Temperature 55 Degrees C, Minimum Ambient Temperature -10 Degrees C, Operating Voltage 24V DC, Outside Diameter 122 mm, Overall Length 20.5 mm, Protection Features IP65, Overheat Protection, Standards CE, DIN EN 62471:2008, UKCA
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 2.00
- Package Weight: 1.08
Product info last updated on February 21, 2026 2:59am UTC
Category: Task Lights
