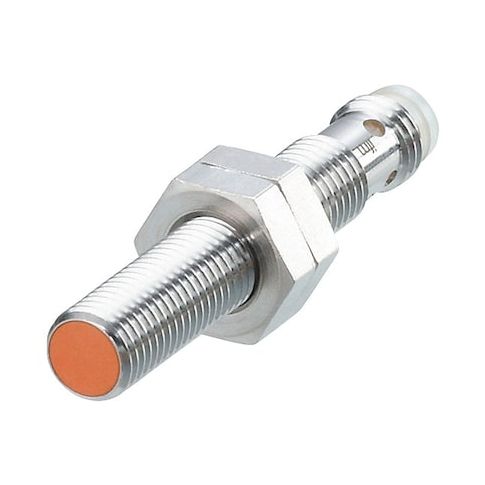

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M8, Wires, Shielded MPN:IE5287
Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, M8, Wires, Shielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects within a 2 mm range. Its cylindrical design and M8 connector make it easy to integrate into various applications. The sensor operates at a frequency of 1,300 Hz and requires a power supply of 10-30 V DC. With an operating temperature range of -25 to 70°C, it can withstand harsh environments. Suitable for use in industrial settings, this sensor is ideal for applications such as machine monitoring, material handling, and automation. Its increased sensing range and durable brass construction make it a valuable addition to any system.
Top product features:
- Increased sensing range
- Shielded for reduced electromagnetic interference
- Detects objects at a distance of up to 2 mm
Top product applications:
- Automotive applications due to its compact size and high sensitivity
- High-speed manufacturing lines where precise object detection is required
- Medical device assembly where a small, reliable sensor is needed
Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Proximity Sensor Operating Frequency 1,300 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection M8 Connector, Output Mode NO, IP Rating IP65, IP67, Case Material Brass White Bronze Coated, Length 50 mm, Operating Temp. Range -25 Degrees to 70 Degrees C, Description/Special Features Increased Sensing Range
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.05
