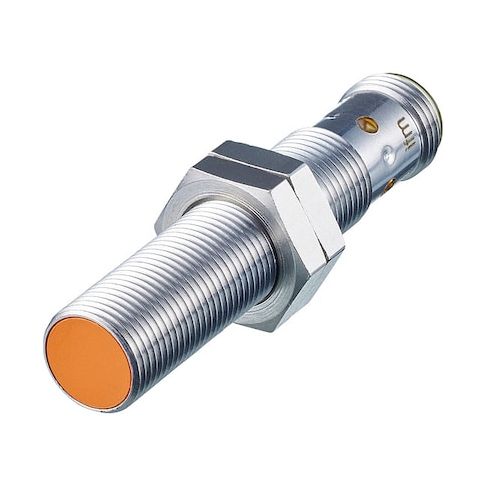

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded MPN:IFS248
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded
This cylindrical inductive proximity sensor is a reliable and versatile solution for detecting objects in a variety of applications. With its compact 12mm diameter and 60mm length, it can be easily integrated into tight spaces. The sensor operates within a wide temperature range of -40°F to 185°F, making it suitable for use in harsh environments. Its shielded design and IP67 rating ensure reliable performance in dusty and wet conditions. Ideal for use in automation, robotics, and industrial settings, this sensor can be used to detect metal objects in applications such as conveyor belt monitoring, vending machines, and more.
Top product features:
- Cylindrical shape allows for easy placement in tight spaces
- Detects objects up to 4 mm away
- Operates at a frequency of 700 Hz for reliable detection
Top product applications:
- Automotive applications due to its high temperature range and IP rating
- Industrial automation, such as in conveyor belt systems, due to its inductive sensing technology and robust design
- Medical equipment, such as in patient monitoring systems, due to its high reliability and compact size
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on February 28, 2026 1:29am UTC
Category: Industrial Electrical Controls and Automation
